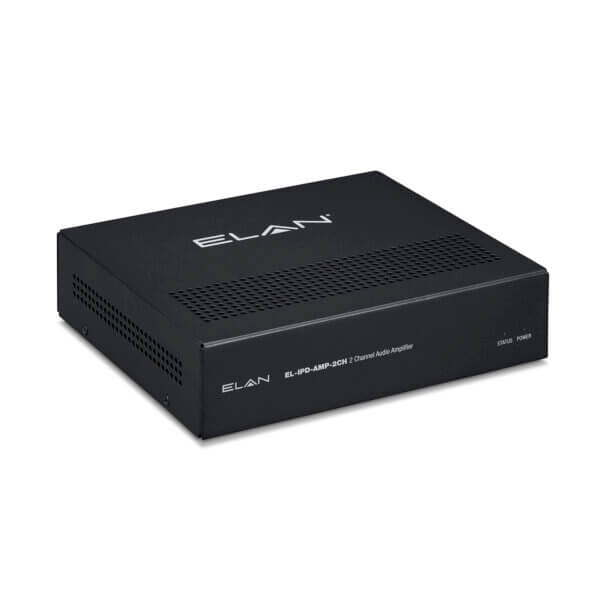

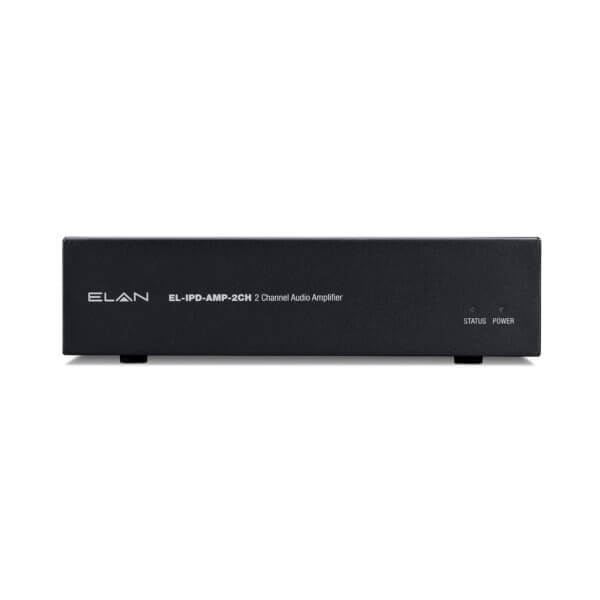

EL-IPD-AMP-2CH

2 Channel Audio Amplifier

Used in a single chassis configuration or with other amplifiers and pre-amps within the ELAN Dante™ enabled audio distribution family of products, the 2 Channel Audio Amplifier delivers high quality audio to a single zone or as part of a multi-zone configuration.

Description

2 Channel Audio Amplifier designed to be used in a single chassis configuration or with other amplifiers and pre-amps within the ELAN IP audio distribution family of products using Dante® Audio Networking. ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by delivering high quality audio over an existing network. Easily scaling from a single chassis solution to a decentralized multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of any size.

Features

Individual Lip Sync Delay for Each Speaker Zone

  • Delay Time: 0 – 400ms
  • Adjustable: 10ms increments

Individual Tone Control for Each Zone

  • Five-band equalizer
  • Loudness on/off

Bridgeable
80WPC @ 8Ω
100WPC @ 4Ω
200 W in Bridge Mode

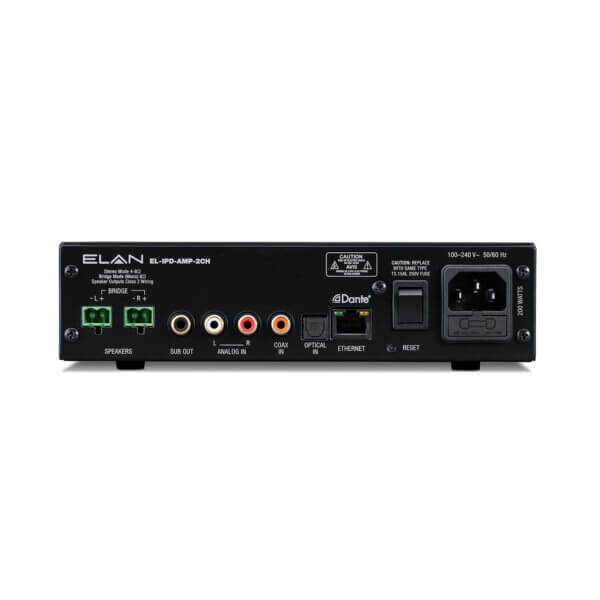

Specifications

Power – AC 100-120 / 220-240 V~ 50/60Hz, 200W

Digital Audio Inputs
Stereo, PCM, 96kHz, 24-bit
• 1 Optical TOSLINK Input
• 1 Coaxial RCA Input

Network
100/1000 Ethernet DHCP Enabled by Default
• 1 RJ45 Jack

Line Level Audio Inputs
Max input level 2.0 VRMS
Input Sensitivity: 0dbV (1.0 VRMS)
Input Impedance: 47k Ω-49k Ω
• Stereo Analog RCA

Subwoofer Output
Variable, follows main volume setting of the amplifier.
Impedance: 470 Ω
• RCA

Amplifier Output
• 2 Stereo Amplifier Outputs – Bridgeable

Output Power:
80W at 8Ω
100W at 4Ω
200 W in Bridge mode

THD:
< 0.05% @ 1kHz Frequency Response:
20Hz to 20kHz, +.5dB/-.5dB

Crosstalk:
>60dB @ 1kHz/1W
Signal to Noise:
>90dB

Dimensions:
7.00D X 7.91W X 1.97H in. / 178D X 201W X 50H mm

Weight:
4.10 lbs / 1.86 Kg
