EL-4KM-VW44

4K 4 X 4 Seamless Switching HDMI Matrix with Video and Multi-Viewer

4K 4 X 4 Seamless Switching HDMI Matrix with Video and Multi-Viewer – IR Routing, Bi-Directional IR and RS232

Description

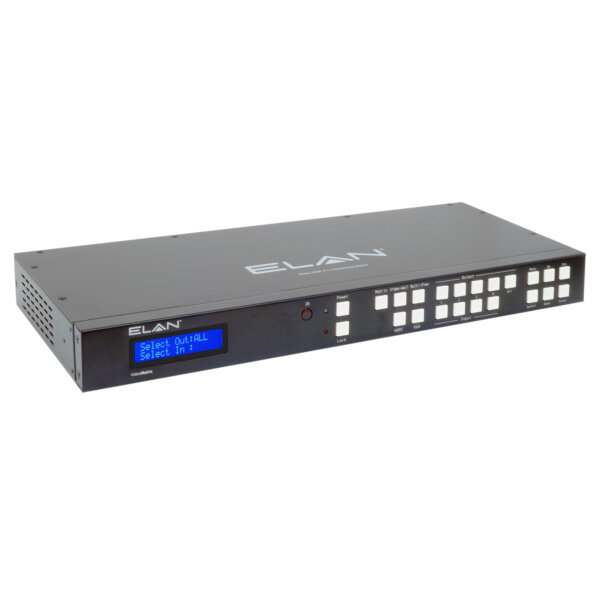

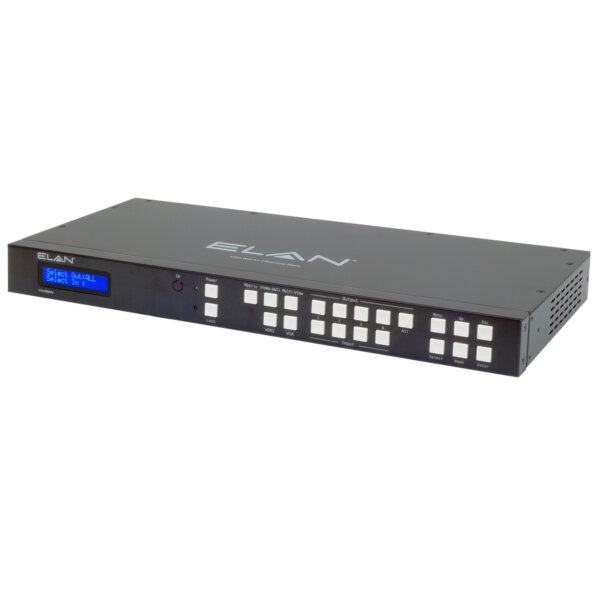

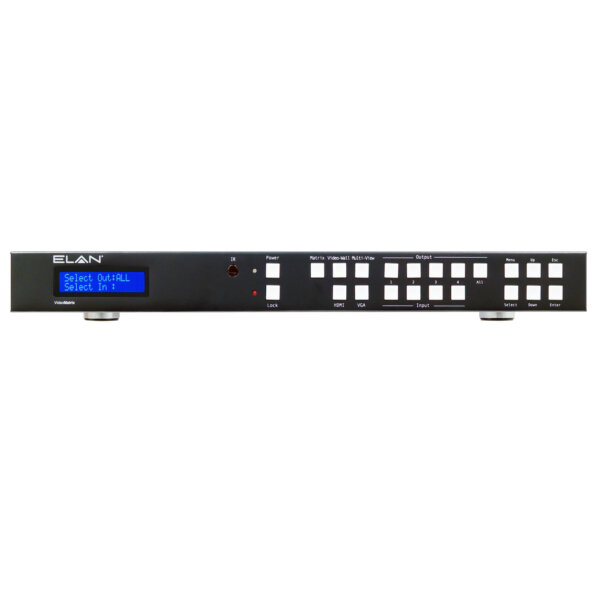

The EL-4KM-VW44 4K HDMI/VGA matrix is a multi-purpose high-speed video processing system. The EL-4KM-VW44 can be configured for 3 different output modes. The EL-4KM-VW44 can perform as a 4×4 seamless matrix switcher, as a 2×2, 4×1 or 1×4 video wall solution, or as a quad multi-view presentation system. Source Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio. The HDMI/VGA matrix is easily configured and added to your Nice/ELAN projects using Nice/ELAN’s Configuration Software. The EL-4KM-VW44 also features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface, and TCP/IP.

Features

  • Features 3 operational modes:
         – 4×4 Matrix (selected HDMI or VGA inputs)
         – Video wall (2×2, 4×1 or 1×4 configuration)
         – Multi-viewer mode with preset layouts
  • Features 4x video inputs that can be configured as HDMI video or VGA video with associated L/R analog audio
  • Seamless video switching
  • Video inputs support all industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • HDMI output resolution fixed to 1080p 60Hz
  • Supports HDMI 2CH PCM audio only
  • IR routing Includes 5 x 5v-to-12v IR converter cables for IR Inputs
  • Web interface module for control and configuration of Matrix
  • Control via front panel, IR, RS-232 and TCP/IP
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management HDCP compliant

Specifications

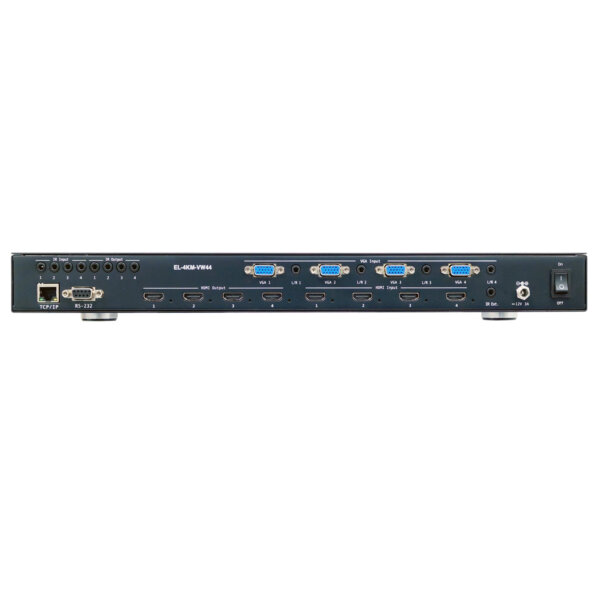

Video Input Connectors :4x HDMI Type A, 19-pin, female & 4x VGA

Video Output Connectors :4x HDMI Type A, 19-pin, female

Audio Input Connectors :4x Analogue audio 3.5mm stereo Jack

RS-232 serial port :DB-9, female TCP/IP Control :RJ45, female

IR Input ports :5 x 5v 3.5mm stereo jack

IR Output ports :4 x 5v 3.5mm mono jack

Mounting kit included

Casing Dimensions (W x H x D) :440mm x 45mm x 180mm

Dimensions including connections (W x H x D) :440mm x 44mm x 187mm

Shipping Weight :4.0kg

Operating Temperature :32°F to 104°F (0°C to 40°C)

Storage Temperature :-4°F to 140°F (-20°C to 60°C)

Power Supply :12V/3A DC

Other Specifications

Shipping Info
  • Length6.25 (Inches)
  • Width12 (Inches)
  • Height7.25 (Inches)
  • Weight5 (Lbs)
  • Unit of MeasureEach
  • UPC844039013521
Other Specifications
  • Video Input Connectors 4x HDMI Type A, 19-pin, female & 4x VGA
  • Video Output Connectors 4x HDMI Type A, 19-pin, female
  • Audio Input Connectors 4x Analogue audio 3.5mm stereo Jack
  • RS-232 serial port DB-9, female TCP/IP Control RJ45, female
  • IR Input ports 5 x 5v 3.5mm stereo jack
  • IR Output ports 4 x 5v 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x H x D) 440mm x 45mm x 180mm
  • Dimensions including connections (W x H x D) 440mm x 44mm x 187mm
  • Shipping Weight 4.0kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Power Supply 12V/3A DC

Warranty

2 Year Limited Warranty.
