EL-4K-VIP-ACM

4K UHD Video Over IP Advanced Control Module

Advanced Control Module for Nice/ELAN 4K UHD Video Over IP

Description

The Nice/ELAN Premium Video over IP (VIP) platform distributes HDMI video over a 1GB Network switch using visually lossless technology. The EL-4K-VIP-ACM Advanced Control Module integrates 4K Video Over IP into the Nice/ELAN smart home control and automation system. Nice/ELAN drivers built into each product’s firmware simplify product installation and negate the need for an understanding of complex network infrastructures. The EL-4K-VIP-ACM includes a web interface module for control and configuration of the system when not used with the Nice/ELAN home control system that features ‘Drag & Drop’ source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio, and Video.

Features

  • Designed to work with the Nice/ELAN smart home control and automation platform
  • Optional web interface module for configuration and control of the Nice/ELAN Video Over IP (VIP) systems when used without the Nice/ELAN system
  • Optional intuitive ‘drag & drop’ source selection with video preview feature for active monitoring of system status when used without the Nice/ELAN system
  • Advanced signal magagement for independent routing of IR, RS-232, USB, audio and video
  • Auto system configuration
  • 2x RJ45 LAN connections to bridge existing network to VIP video distribution network, resulting in:
    • Better system performance as network traffic is separated
    • No advanced network setup required
    • Independent IP address per LAN connection
    • Allows simlified TCP / IP control of VIP system
  • RS-232 integration for control of VIP system
  • IR integration for control of VIP system
  • Powered with PoE (Power over Ethernet) using a PoE Switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE
  • Support for IOS and Android App control
  • 3rd Party drivers available for all major home control brands”

Specifications

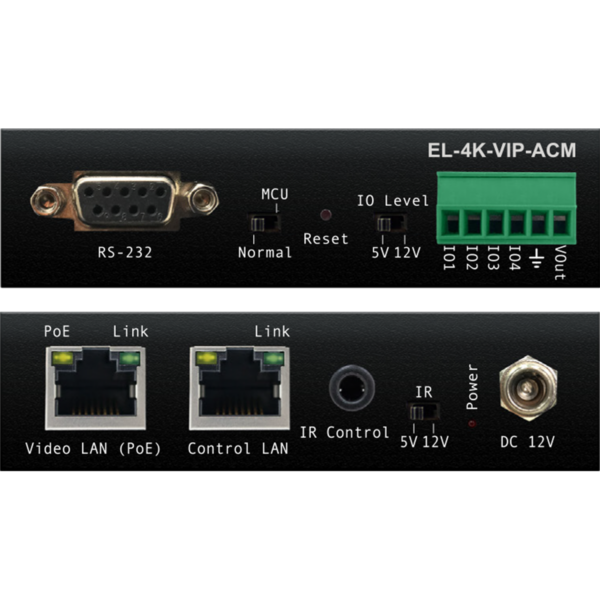

Control Ethernet port: 1 x LAN RJ45 connector

Video Ethernet port: 1 x LAN RJ45 connector (1x PoE support 9W)

RS-232 serial port: 1 x DB-9, female

I/O port: 1 x 6-pin Phoenix connector (reserved for future use)

IR control port: 1 x 3.5mm stereo jack

Dimensions (W x D x H ): 96mm x 110mm x 26mm

Shipping weight (Kit): 0.6kg

Operating temperature: 32°F to 104°F (0°C to 40°C)

Storage temperature: -4°F to 140°F (-20°C to 60°C)
