EL-4KM-V44-KIT

4×4 HDBaseT Matrix Kit – 70m (4K @60 up to 40m)

4×4 HDBaseT Matrix Kit – 70m (4K @60 up to 40m), HDCP 2.2, Bi-directional IR, PoH (PoE), Simultaneous HDMI Outputs, Audio Breakout, RS-232 & IP Control, Web GUI

Description

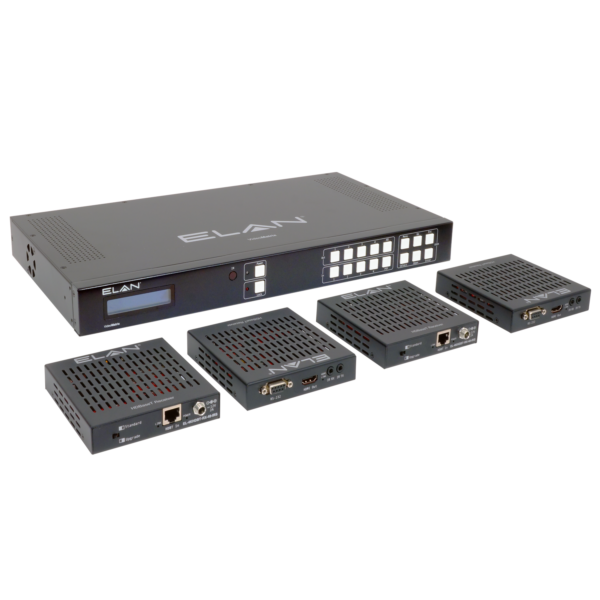

The Nice/ELAN HDMI Video Matrices offer unprecedented performance and value for the custom installation market. The EL-4KM-V44-KIT is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable. The matrix also provideos advanced features including point-to-point Audio breakout with pre-amp variable line-level control, simultaneous HDBaseT/HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix. The matrix is easily configured and added to your Nice/ELAN projects using Nice/ELAN’s Configuration Software. The EL-4KM-V44-KIT is supplied with 4 x EL-4KHDBT-RX-IRS Receivers.

Features

  • Features 4x HDMI inputs which can be independently routed to 4x HDBaseT/HDMI outputs
  • Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
  • HDMI audio breakout to associated analog L/R audio outputs with pre-amp line level control
  • Extends HDMI 1080p up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Bi-directional IR from all input and output locations
  • Bi-directional RS-232 from all input and output locations
  • Includes 4 x 5v-to-12v IR converter cables for IR Inputs

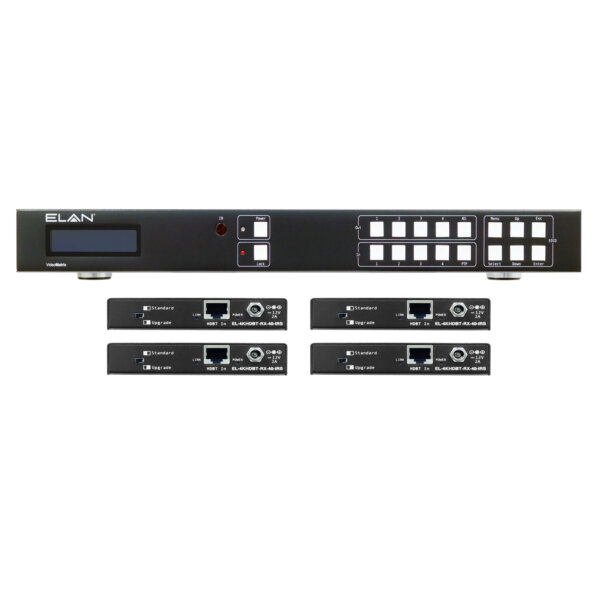

  • Control via front panel , IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management HDCP 2.2 compliant

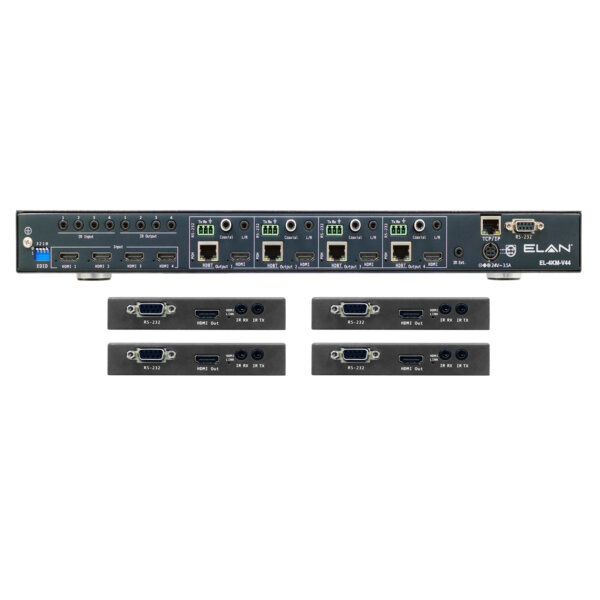

  • Kit includes 4 x EL-4KHDBT-RX-IRS HDBaseT Receivers
  • 1U Design for 19″ rack mount integration – Mounting kit included

Specifications

Video Input Connectors :4x HDMI Type A, 19-pin, female

Video Output Connectors :4x HDMI Type A, 19-pin, female
:4x HDBaseT RJ45 connector
Audio Output Connectors :4x 3.5mm stereo jack

RS-232 serial port :5x DB-9, female

TCP/IP Control :1x RJ45, female

IR Input ports :5x5v 3.5mm stereo jack

IR Output ports :4x5v 3.5mm mono jack

Rack-Mountable :1U rack height, rack ears included

Casing Dimensions (W x H x D) :440mm x 235mm x 43mm, without feet

Dimensions (W x D x H) :440mm x 241mm x 43mm, with feet

Shipping Weight :2.7kg

Operating Temperature :32°F to 104°F (0°C to 40°C)

Storage Temperature :-4°F to 140°F (-20°C to 60°C)

Power Supply :1x 24V/3.5A DC (POH)

Other Specifications

Shipping Info
  • Length20 (Inches)
  • Width11.9 (Inches)
  • Height6.1 (Inches)
  • Weight17.78 (Lbs)
  • Unit of MeasureEach
  • UPC844039013460
Other Specifications
  • Video Input Connectors 4x HDMI Type A, 19-pin, female
  • Video Output Connectors 4x HDMI Type A, 19-pin, female
  • 4x HDBaseT RJ45 connector Audio Output Connectors 4x 3.5mm stereo jack
  • RS-232 serial port 5x DB-9, female
  • TCP/IP Control 1x RJ45, female
  • IR Input ports 5x5v 3.5mm stereo jack
  • IR Output ports 4x5v 3.5mm mono jack
  • Rack-Mountable 1U rack height, rack ears included
  • Casing Dimensions (W x H x D) 440mm x 235mm x 43mm, without feet
  • Dimensions (W x D x H) 440mm x 241mm x 43mm, with feet
  • Shipping Weight 2.7kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Power Supply 1x 24V/3.5A DC (POH)

Warranty

2 Year Limited Warranty.
