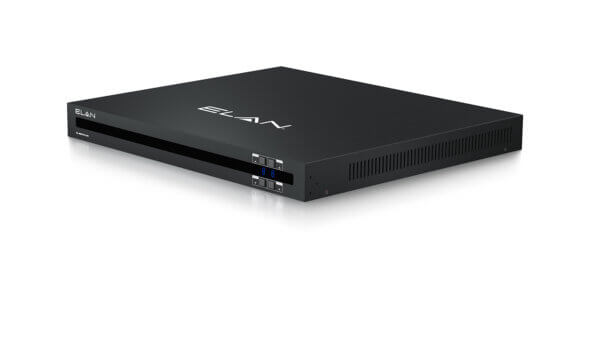

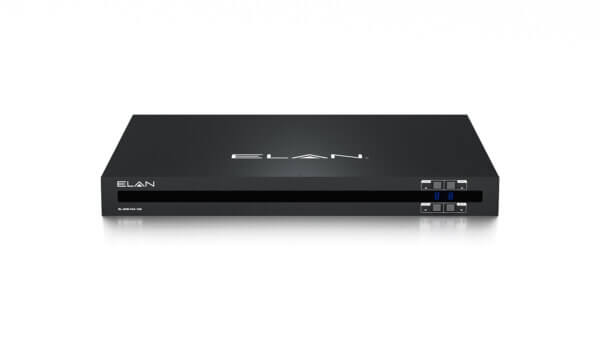

EL-4KM-V44-18G

4×4 HDBaseT Matrix – 70m (4K @60 up to 40m) HDCP 2.2, 4x HDBaseT Outputs & 1 x HDMI Outputs, Bi-directional IR, PoC, RS-232 & IP Control, Line Level Volume Control, Web GUI

Description

The ELAN® 4×4 HDBaseT matrix offers unprecedented performance and value for the custom installation market. The EL-4KM-V44-18G is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix utilizing CSC technology to deliver HDMI, bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The matrix also provides advanced features including simultaneous HDBaseT / HDMI on output 1, video down conversion on HDBaseT outputs and a web browser interface module for control and configuration of the matrix.

Specifications

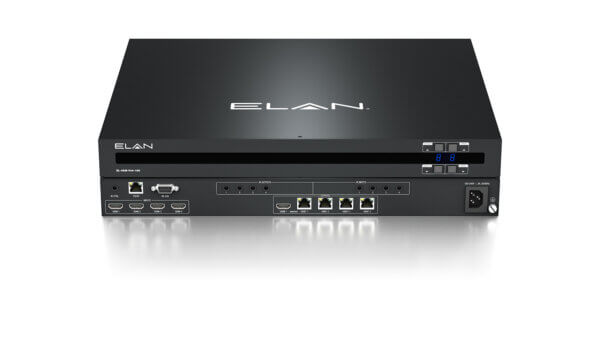

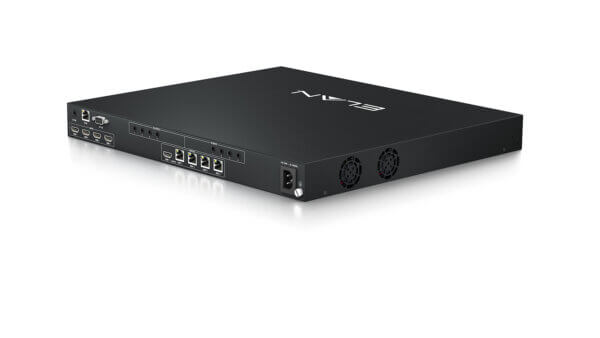

Video Input Connectors$$ 4 x HDMI Type A, 19-pin, female
Video Output Connectors$$ 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors
RS-232 Serial Port$$1 x 3-pin Phoenix connector
IR Input Ports$$ 5 x 3.5mm stereo jack
IR Output Ports$$ 4 x 3.5mm mono jack
Rack Mountable$$1U rack height, rack ears included
Casing Dimensions (W x H x D)$$437mm x 44mm x 377mm (without feet)
Dimensions (W x H x D)$$ 437mm x 53mm x 384mm Shipping
Weight$$ 6.25kg
Operating Temperature$$ 32°F to 104°F (-5°C to +55°C)
Storage Temperature$$ -4°F to 140°F (-25°C to +70°C)
Power Supply$$ Internal 100-240V AC 3A HDBT
Power Output$$ 12V DC 0.8A Per Port

Package Contents:

• 1 x EL-4KM-V44-18G
• 1 x Rack mounting kit
• 1 x Remote control
• 4 x IR emitters
• 5 x IR receivers
• 1 x RS-232 control cable
• 1 x IR control cable – 3.5mm-3.5mm cable
• 1 x Quick Reference Guide
• 4 x IEC Power cables (US, UK, EU & AU)
