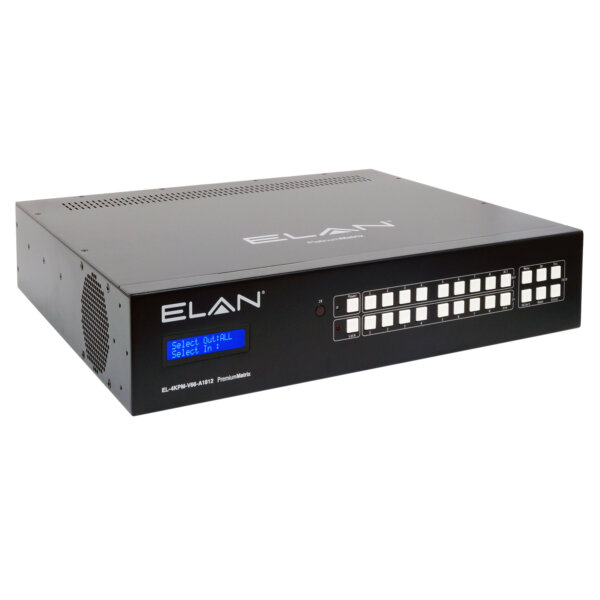

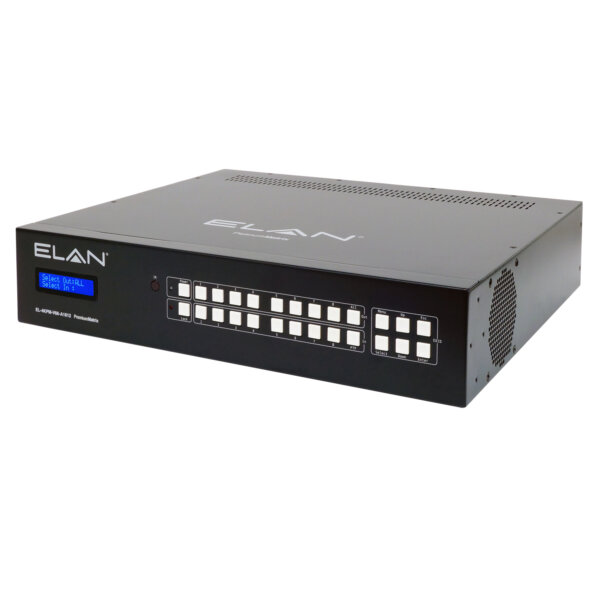

EL-4KPM-V66-A1812

6×6 HDBaseT AV Matrix – 100m (4K @ 60 up to 70m)

6×6 HDBaseT AV Matrix – 100m (4K @ 60 up to 70m), Bi-directional IR, Built-In Audio Matrix 18×12, PoH (PoE), Simultaneous HDMI Outputs,  Audio Breakout, ARC enabled (1x HDBaseT Input), Line Level Volume Control, Web GUI

Description

The Nice/ELAN Premium HDMI Audio/Video Matrices delivers a range of industry leading features. The EL-4KPM-V66-A1812 is a 4K HDCP 2.2 compliant 6×6 video matrix, transmitting HDMI, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable. The matrix also provides a 18×12 audio matrix with advanced features including; independent audio routing, Audio Return Channel (ARC), simultaneous HDBaseT/HDMI outputs, HDBaseT input, LAN Serving and RS-232 pass through to enable seamless 3rd party control integration. The matrix can be controlled and configured using the built-in web interface module or Nice/ELAN Configuration Software, allowing the user to define audio channels, designate EDID presets and insert audio delays on outputs to correct any lip-sync issues within the system.

Features

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
  • Features 6x HDMI inputs which can be independently routed to 6x HDBaseT + HDMI outputs
  • Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
  • Input 1 supports dual HDBaseT & HDMI to enable integration of remote HDMI sources up to 1080p 70m distance (4K up to 40m)Up to 18×12 Audio Matrix independently controllable from video
       – 6x independent analog L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT/HDMI outputs
       – HDMI audio breakout to Coaxial digital and analogue L/R audio outputs with variable pre-amp line level control
       – Supports ARC (Audio Return Channel) via HDMI and Optical digital inputs from compatible EL-4KHDBT-RX-70-E-ARC-IRS receivers
  • Extends HDMI up to distance of 100m over single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated Ethernet switch (LAN Serving) when used with EL-4KHDBT-RX-70-E-ARC-IRS (sold separatley). EL-4KHDBT-RX-70-E-ARC-IRS features a 3 port 10/100 Ethernet switch
  • Web interface module for control and configuration of Matrix
  • Supports bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)
  • Supports bi-directional IR from all input and output locations
  • Includes 6 x 5v-to-12v IR converter cables for IR Input and 2 RS-232 control cablesControl of Matrix via front panel, IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT) to power compatible HDBaseT transmitters & receivers
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • 2U Design for 19″ rack mount integration – Mounting kit included

Specifications

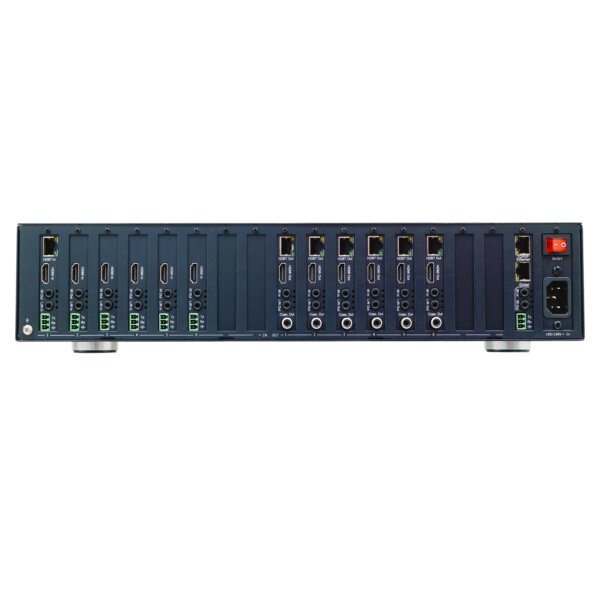

Video Input Connectors :6x HDMI Type A, 19-pin, female, 1x HDBaseT RJ45 connector

Video Output Connectors :6x HDMI Type A, 19-pin, female, 6x HDBaseT RJ45 connector

Audio Input Connectors :6x 3.5mm stereo jack (L/R)

Audio Output Connectors :6x RCA (SPDIF) :6x 3.5mm stereo jack (L/R)

RS-232 serial ports :7x 3-Pin Phoenix connector
TCP/IP Control :RJ45, female

Ethernet/Network :RJ45, female
IR Input ports :7x5v 3.5mm stereo jack

IR Output ports :7x5v 3.5mm mono jack

Rack-Mountable :2 U rack height, rack ears included

Casing Dimensions (W x H x D) : 440mm x 87mm x 361m, without feet

Dimensions Including Connections (W x H x D) :440mm x 87mm x 369mm, with feet

Shipping Weight :8.8kg

Operating Temperature :32°F to 104°F (0°C to 40°C)

Storage Temperature :-4°F to 140°F (-20°C to 60°C)

Power Supply :Internal 100-240v DC

Other Specifications

Shipping Info
  • Length24 (Inches)
  • Width21.5 (Inches)
  • Height11 (Inches)
  • Weight31.4 (Lbs)
  • Unit of MeasureEach
  • UPC844039013446
Other Specifications
  • Video Input Connectors 6x HDMI Type A, 19-pin, female, 1x HDBaseT RJ45 connector
  • Video Output Connectors 6x HDMI Type A, 19-pin, female, 6x HDBaseT RJ45 connector
  • Audio Input Connectors 6x 3.5mm stereo jack (L/R)
  • Audio Output Connectors 6x RCA (SPDIF) 6x 3.5mm stereo jack (L/R)
  • RS-232 serial ports 7x 3-Pin Phoenix connector
  • TCP/IP Control RJ45, female
  • Ethernet/Network RJ45, female
  • IR Input ports 7x5v 3.5mm stereo jack
  • IR Output ports 7x5v 3.5mm mono jack
  • Rack-Mountable 2 U rack height, rack ears included
  • Casing Dimensions (W x H x D) 440mm x 87mm x 361m, without feet
  • Dimensions Including Connections (W x H x D) 440mm x 87mm x 369mm, with feet
  • Shipping Weight 8.8kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Power Supply Internal 100-240v DC

Warranty

2 Year Limited Warranty.
