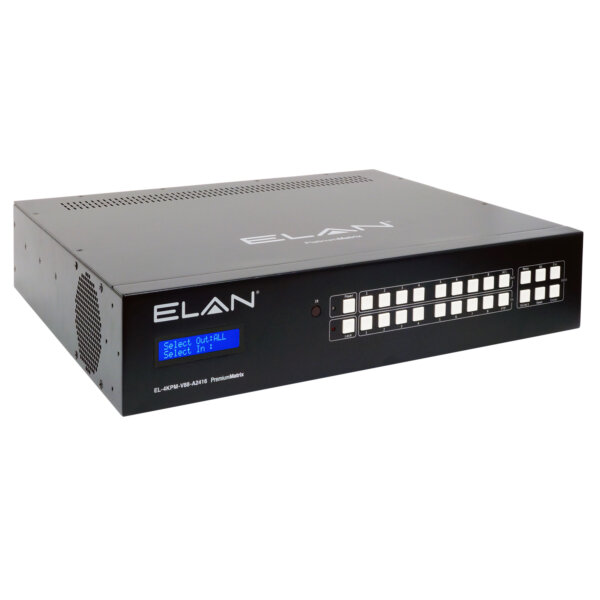

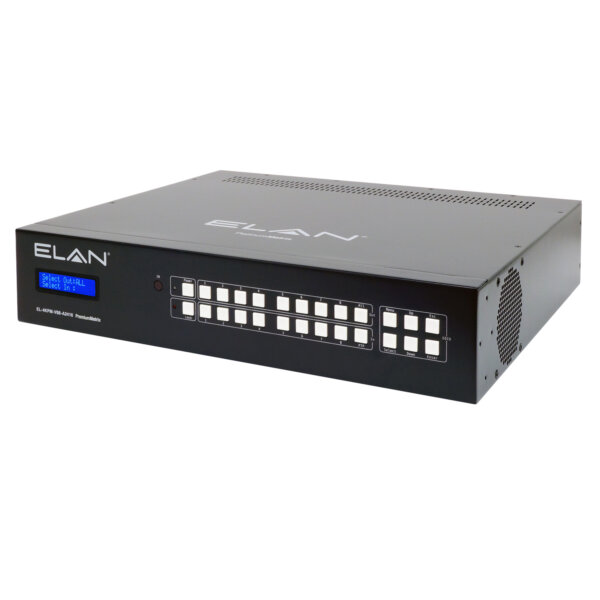

EL-4KPM-V88-A2416

8×8 HDBaseT AV Matrix – 100m (4K @ 60 up to 70m)

8×8 HDBaseT AV Matrix – 100m (4K @ 60 up to 70m), Bi-directional IR, PoH (PoE), Simultaneous HDMI Outputs,  Audio Breakout, ARC enabled (2 x HDBaseT Input), Line Level Volume Control, Web GUI

Description

The Nice/ELAN Premium HDMI Audio/Video Matrices delivers a range of industry leading features. The EL-4KPM-V88-A2416 is a 4K HDCP 2.2 compliant 8×8 video matrix, transmitting HDMI, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable. The matrix also provides a 24×16 audio matrix with advanced features; including independent audio routing, Audio Return Channel (ARC), simultaneous HDBaseT/HDMI outputs, two HDBaseT inputs , LAN Serving and RS-232 pass through to enable seamless 3rd party control integration. The matrix can be controlled and configured using the built-in web interface module or Nice/ELAN Configuration Software, allowing the user to define audio channels, designate EDID presets and insert audio delays on outputs to correct any lip-sync issues within the system.

Features

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
  • Features 8x HDMI inputs which can be independantly routed to 8x HDBaseT + HDMI outputs
  • Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
  • Inputs 1  & 2 support dual HDBaseT & HDMI to enable integration of remote HDMI sources up to 1080p 70m distance (4K up to 40m)
  • Up to 24×16 Audio Matrix independently controllable from video:
    – 8x independent analogue L/R audio inputs which can be routed to audio outputs or embedded onto HDBaseT/HDMI outputs
    – HDMI audio breakout to Coaxial digital and analog L/R audio outputs with variable pre-amp line level control
    – Supports ARC (Audio Return Channel) via HDMI or Optical digital inputs from compatible EL-4KHDBT-RX-70-E-ARC-IRS receivers
  • Extends HDMI up to distance of 100m over single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal displaySupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated Ethernet switch (LAN Serving) when used with EL-4KHDBT-RX-70-E-ARC-IRS (sold separatley). EL-4KHDBT-RX-70-E-ARC-IRS features a 3 port 10/100 Ethernet switch
  • Web interface module for control and configuration of Matrix
  • Bi-directional RS-232 from all input and output locations (with compatible transmitters & receivers)
  • Bi-directional IR from all input and output locations
  • Includes 8 x 5v-to-12v IR converter cables for IR Input and 2 RS-232 control cables

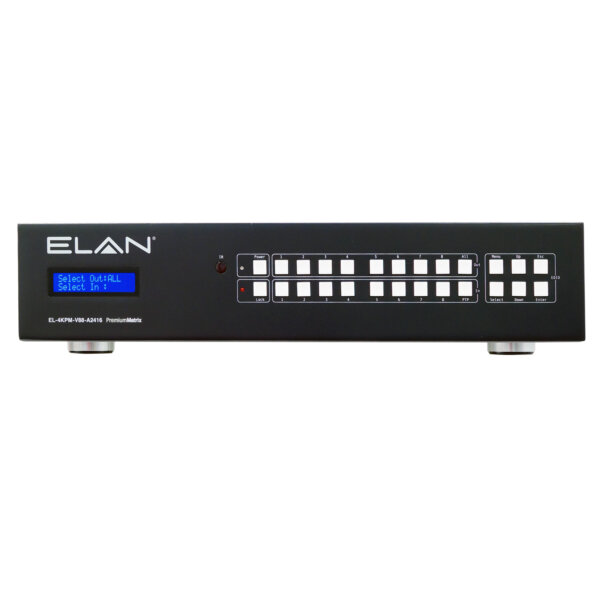

  • Control of Matrix via front panel , IR, RS-232 and TCP/IP
  • Supports PoH (Power over HDBaseT) to power compatible HDBaseT transmitters & receivers
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management HDCP 2.2 compliant
  • 2U Design for 19″ rack mount integration – Mounting kit included

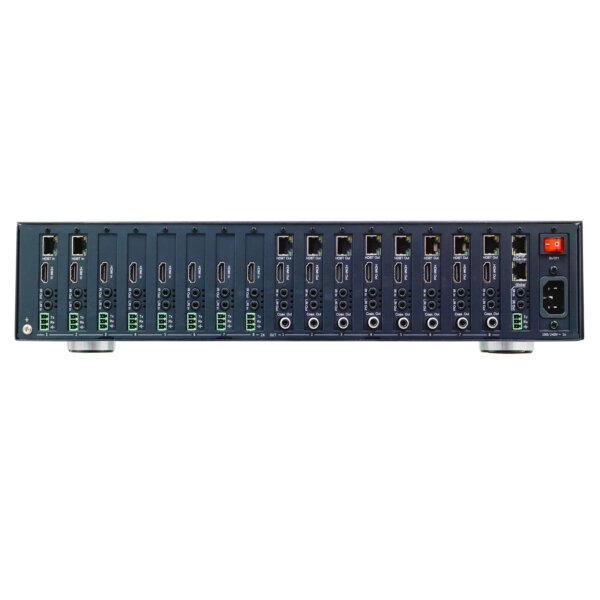

Specifications

Video Input Connectors :8x HDMI Type A, 19-pin, female
:2x HDBaseT RJ45 connector

Video Output Connectors :8x HDMI Type A, 19-pin, female :8x HDBaseT RJ45 connector

Audio Input Connectors :8x 3.5mm stereo jack (L/R)

Audio Output Connectors :8x RCA (SPDIF) :8x 3.5mm stereo jack (L/R)

RS-232 serial ports :9x 3-Pin Phoenix connector

TCP/IP Control :RJ45, female Ethernet/Network :RJ45, female

IR Input ports :9x5v 3.5mm stereo jack

IR Output ports :9x5v 3.5mm mono jack

Rack-Mountable :2 U rack height, rack ears included

Casing Dimensions (W x H x D) :440mm x 87mm x 361m, without feet

Dimensions Including Connections (W x H x D) :440mm x 87mm x 369mm, with feet

Shipping Weight :8.8kg
Operating Temperature :32°F to 104°F (0°C to 40°C)

Storage Temperature :-4°F to 140°F (-20°C to 60°C)

Power Supply :Internal 100-240v DC

Other Specifications

Shipping Info
  • Length24.02 (Inches)
  • Width21.26 (Inches)
  • Height10.83 (Inches)
  • Weight31.97 (Lbs)
  • Unit of MeasureEach
  • UPC844039013439
Other Specifications
  • Video Input Connectors 8x HDMI Type A, 19-pin, female
  • 2x HDBaseT RJ45 connector
  • Video Output Connectors 8x HDMI Type A, 19-pin, female 8x HDBaseT RJ45 connector
  • Audio Input Connectors 8x 3.5mm stereo jack (L/R)
  • Audio Output Connectors 8x RCA (SPDIF) 8x 3.5mm stereo jack (L/R)
  • RS-232 serial ports 9x 3-Pin Phoenix connector
  • TCP/IP Control RJ45, female Ethernet/Network RJ45, female
  • IR Input ports 9x5v 3.5mm stereo jack
  • IR Output ports 9x5v 3.5mm mono jack
  • Rack-Mountable 2 U rack height, rack ears included
  • Casing Dimensions (W x H x D) 440mm x 87mm x 361m, without feet
  • Dimensions Including Connections (W x H x D) 440mm x 87mm x 369mm, with feet
  • Shipping Weight 8.8kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Power Supply Internal 100-240v DC

Warranty

2 Year Limited Warranty.
