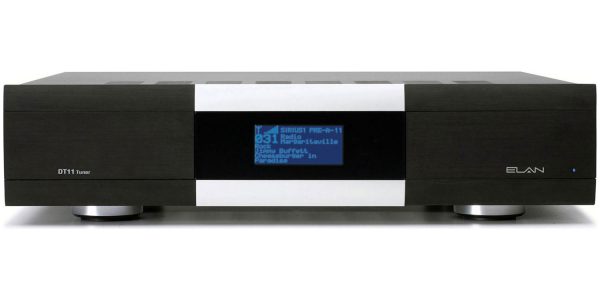

DT11

AM/FM SIRIUS-Ready Tuner, rack ears included

The DT11 is a Sirius ready, AM/FM tuner that lets your clients enjoy independent radio station listening in different rooms throughout the house.

Description

Built in to the DT11 are high quality AM / FM tuners. Additionally, the DT11 features an input for the quick and easy connection of a Sirius Satellite Radio Module.

A dedicated output for the AM / FM tuner plus a dedicated Sirius output means that your clients can listen up to two different streams of radio throughout their home from a single DT11.

The DT11 has a front panel IR receiver and comes with a full function handheld remote. There are also rear panel control ports for IR, serial and Ethernet control. In an Nice/ELAN multi-room system, 2-way feedback, including station call letters, frequency, genre, song name and artist, can be viewed on any Nice/ELAN Touch Panel, Touch Screen or TS2L Touchpad.* The DT11 also decodes and displays data from the Radio Broadcast Data System (RBDS).

Setup of the DT11 is easy and intuitive through front panel buttons and a graphical LCD. Installers are guided through the setup process for everything, including Network and Ethernet settings. There’s even a diagnostics screen that provides AM/FM signal strength and Sirius signal detection status. Users can easily program their own favorite station presets as they too are guided through this process for each tuner.

*Displayable data varies depending on source, i.e. standard AM/FM, RBDS, or Sirius radio.

Features

  • Built-in dual AM / FM tuners
  • Four sets of independent outputs for multi-room listening
  • IR, Ethernet & Serial controllable
  • View radio station & “Now Playing” information on Nice/ELAN user interfaces
  • Easy setup & diagnostics w / front panel buttons & graphical LCD
  • Displays all RBDS (US) and RDS (EU) data
  • Preset or direct numeric access
  • Each tuner includes 396 presets
  • IR remote control (included)
  • Link 2 DT22s to provide up to 4 tuners (4 AM / FM)
  • ELAN SmartSource with built-in RS-232 serial driver

Specifications

Control Ports:
IR In / Out: (2) 3.5mm jacks
VIA!Net In / Out:(2) RJ-45
RS-232:(1) Female DB9 (DCE)
:
Audio: FM:
Tuning Frequencies : 76 ~ 108MHz
Frequency Response: 300Hz to 15kHz (+0/-3dB)
SNR: 63dB (Mono) / 58dB (Stereo)
:
Audio: AM:
Tuning Frequencies :520 ~ 1710kHz
SNR: 56dB
Ethernet : (1) RJ-45
Analog Audio Outputs :(2 pr.) RCA Stereo
:(1 pr. per AM / FM)
Digital Audio Output: (2) Optical TOSLink
:(1) per AM / FM tuner
Antenna Inputs :(1) Coax FM Antenna Input
:(1) AM Antenna Input – Push Terminals
Power requirements: 240VAC, 35W
Dimensions : (in.) 17 W x 3-1/2 H x 14 D
:(mm) 432 W x 89 H x 356 D
Weight :13.6 lbs/6 kg
Certifications: CE, C-tick

Other Specifications

Shipping Info
  • Length21.9 (Inches)
  • Width20.4 (Inches)
  • Height8.6 (Inches)
  • Weight18.9 (Lbs)
  • Unit of MeasureEach
  • UPC844039010315
  • Master Pack Qty10
Other Specifications
  • Control Ports
  • IR In / Out (2) 3.5mm jacks
  • VIA!Net In / Out(2) RJ-45
  • RS-232(1) Female DB9 (DCE)
  • Audio: FM
  • Tuning Frequencies 76 ~ 108MHz
  • Frequency Response 300Hz to 15kHz (+0/-3dB)
  • SNR 63dB (Mono) / 58dB (Stereo)
  • Audio: AM
  • Tuning Frequencies 520 ~ 1710kHz
  • SNR 56dB
  • Ethernet (1) RJ-45
  • Analog Audio Outputs (2 pr.) RCA Stereo
  • (1 pr. per AM / FM)
  • Digital Audio Output (2) Optical TOSLink
  • (1) per AM / FM tuner
  • Antenna Inputs (1) Coax FM Antenna Input
  • (1) AM Antenna Input – Push Terminals
  • Power requirements 240VAC, 35W
  • Dimensions (in.) 17 W x 3-1/2 H x 14 D
  • (mm) 432 W x 89 H x 356 D
  • Weight 13.6 lbs/6 kg
  • Certifications: CE, C-tick

Warranty

2 Year Limited Warranty
