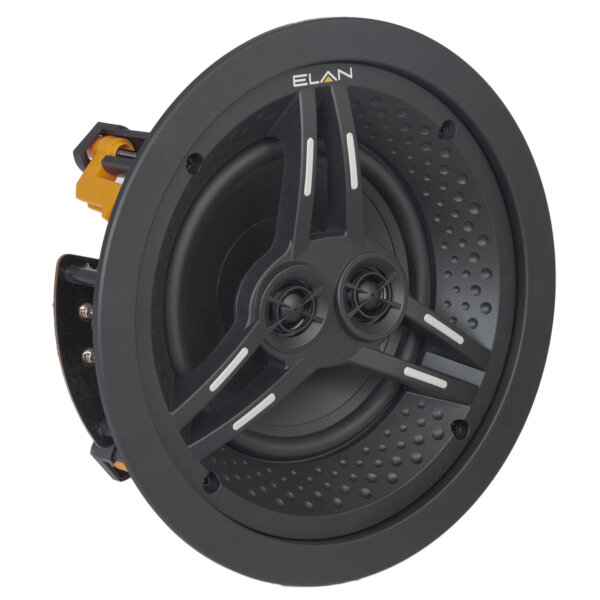

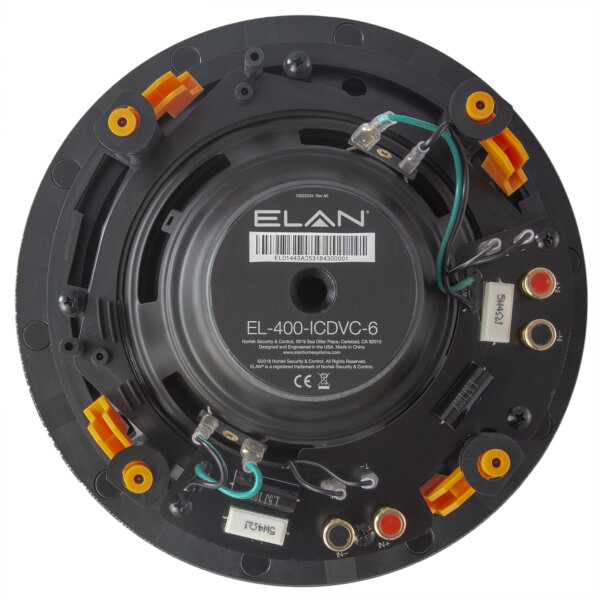

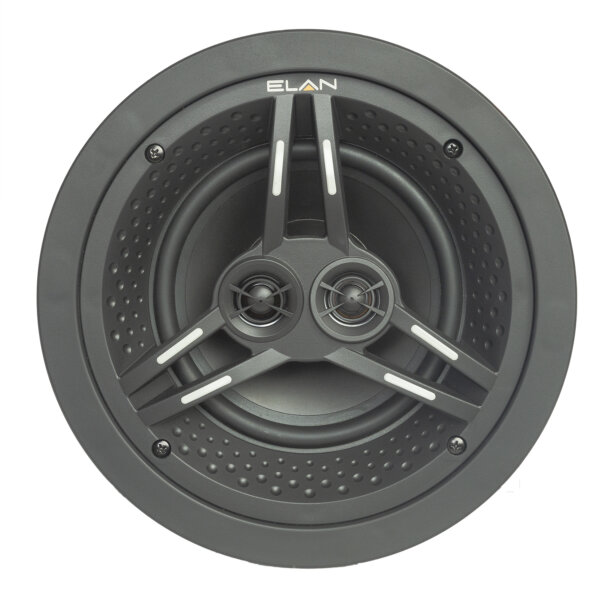

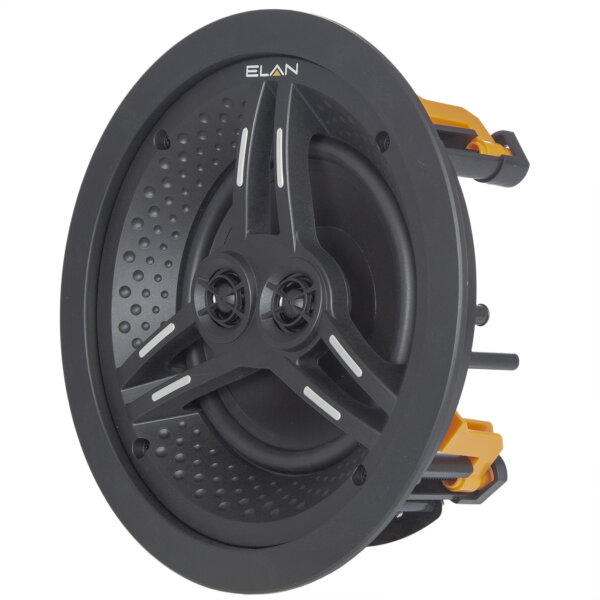

EL-400-ICDVC-6

ELAN 400 Series 6-1/2″ (160mm) DVC/SST In-Ceiling Speaker (Each)

Description

When background music is what’s needed, the EL-400-ICDVC-6 delivers. Featuring top-shelf components including 1/2″ mylar tweeters and a polypropylene cone woofer, the 400 Series is the perfect solution for audio throughout the home while keeping an eye on the budget. The dual input / single stereo design delivers a complete experience from a single speaker without the need for a stereo pair

Features

Don’t miss a Beat
The speaker’s Left and Right inputs allow you deliver a complete experience out of one speaker without the need of a stereo pair

Room Filling Sound
Low Crossover points and a woofer that’s mounted as close to the surface as possible delivers the widest dispersion and best sound quality possible

Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Easy-Grip Tweeter Bridge
We know you do it! Installing speakers above your head requires a sturdy grip point and the ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Dimpled Baffle Design
The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound

Secure Connection
All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty
Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty

Specifications

Woofer Size: 6-1/2″ / 160mm
Woofer Construction: Polypropylene Cone
Tweeter: Dual 1/2″ / 13mm Fixed Mylar Dome
Frequency Response: 40Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 100 (Watts)
Sensitivity: 89 (dB)
Timbre: Timbre-Matched to all 400 Series Speakers
Dimensions: 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth
Hole Cutout Dimensions: 8-1/4″ / 210 mm Diameter
Mounting Depth: 3.7″ / 94mm

Other Specifications

Shipping Info
  • Length10.6 (Inches)
  • Width10.5 (Inches)
  • Height5.8 (Inches)
  • Weight7.64 (Lbs)
  • Unit of MeasureEach
  • UPC844039014436
Other Specifications
  • Woofer Size 6-1/2″ / 160mm
  • Woofer Construction Polypropylene Cone
  • Tweeter Dual 1/2″ / 13mm Fixed Mylar Dome
  • Frequency Response 40Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 100 (Watts)
  • Sensitivity 89 (dB)
  • Timbre Timbre-Matched to all 400 Series Speakers
  • Dimensions 9-5/8″ / 237mm Diameter x 3.8″ / 97 mm Depth
  • Hole Cutout Dimensions 8-1/4″ / 210 mm Diameter
  • Mounting Depth 3.7″ / 94mm
Proposition 65 Warning
  • Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Warranty

Limited Lifetime
