EL-400-IW-6

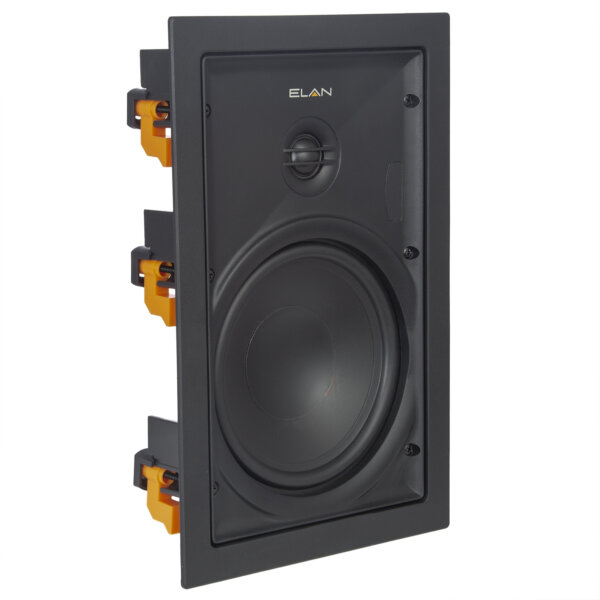

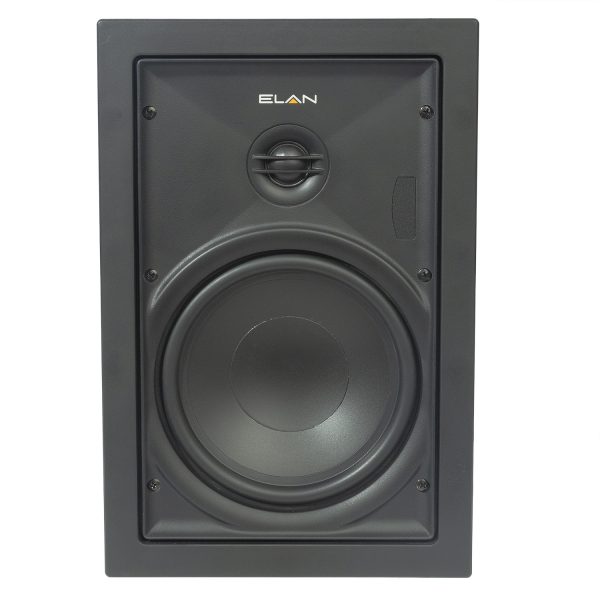

ELAN 400 Series 6-1/2″ (160mm) In-Wall Speakers (Pair)

Description

When a bit of background music is what’s needed, the EL-400-IW-6 Series delivers. Featuring top-shelf components including a 1/2″ silk dome tweeter and polypropylene cone woofer, the 400 Series is a perfect solution with an eye on the budget.

Features

Room Filling Sound
Low Crossover points and a woofer that’s mounted as close to the surface as possible delivers the widest dispersion and best sound quality possible

Silky Smooth Highs
Silk dome tweeters reduce the severity of break-up modes resulting in silky smooth sound which is pleasing to the ear- even at high volumes

Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Secure Connection
All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty
Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty

Specifications

Woofer Size$$ 6-1/2″ / 160mm
Woofer Construction$$ Polypropylene Cone
Tweeter$$ 3/4″ / 19mm Fixed Silk Dome
Frequency Response$$ 52Hz-20kHz
Impedance$$ 8 (Ohms)
Power Handling$$ 100 (Watts)
Sensitivity$$ 88 (dB)
Timbre$$ Timbre-Matched to all 400 Series Speakers
Dimensions$$ 7.9″ / 200mm Width x 11.9″ / 303 mm Height x 3.2″ / 82mm Depth
Hole Cutout Dimensions$$ 6.75″ / 172mm Width 10.9″ / 276.3mm Height
Mounting Depth$$ 3.11″ / 79mm

Other Specifications

General
  • Woofer Size6.5 (Inches)
Shipping Info
  • Length13.5 (Inches)
  • Width9.9 (Inches)
  • Height10.5 (Inches)
  • Weight4.16 (Lbs)
  • Unit of MeasurePair
  • UPC844039014467
Other Specifications
  • Woofer Size 6-1/2″ / 160mm
  • Woofer Construction Polypropylene Cone
  • Tweeter 3/4″ / 19mm Fixed Silk Dome
  • Frequency Response 52Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 100 (Watts)
  • Sensitivity 88 (dB)
  • Timbre Timbre-Matched to all 400 Series Speakers
  • Dimensions 7.9″ / 200mm Width x 11.9″ / 303 mm Height x 3.2″ / 82mm Depth
  • Hole Cutout Dimensions 6.75″ / 172mm Width 10.9″ / 276.3mm Height
  • Mounting Depth 3.11″ / 79mm
Proposition 65 Warning
  • Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Warranty

Limited Lifetime
