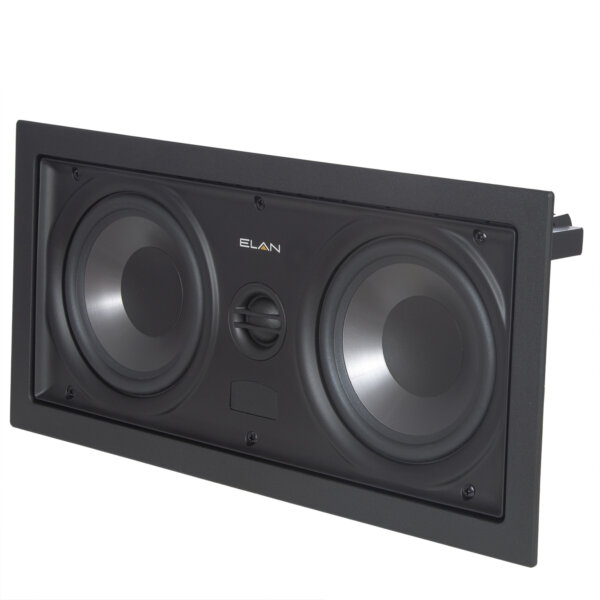

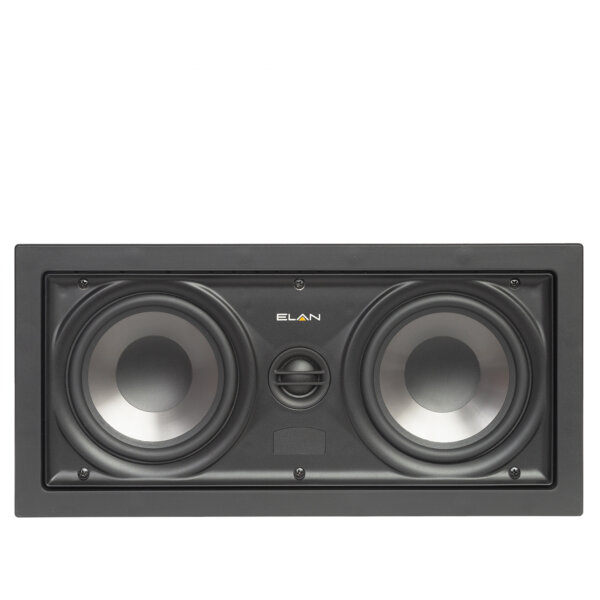

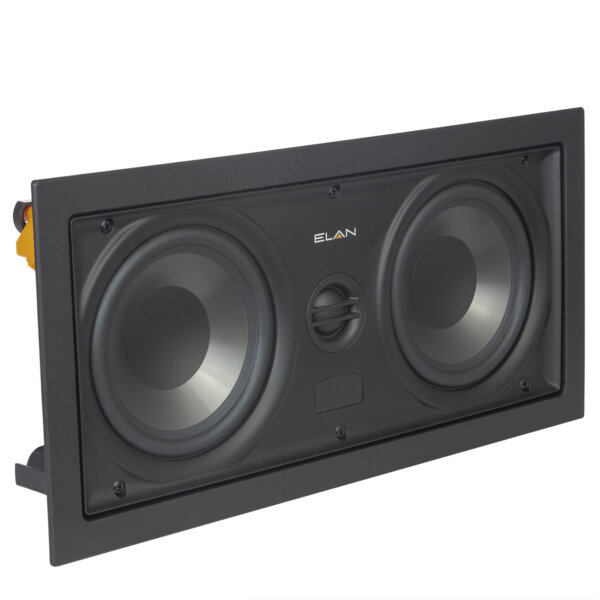

ELAN 600 Series 5″ (130mm) LCR In-Wall Speaker (Each)

EL-600-IWLCR-5

Description

A multipurpose speaker with step-up performance, the EL-600-IWLCR-5 includes an upgraded injection molded polypropylene cone woofer and a pivoting 1″ silk dome tweeter that’s perfect for home theater as a left, center, or right speaker.

Features

Room Filling Sound
Low Crossover points and woofers that are mounted as close to the surface as possible delivers the widest dispersion and best sound quality possible

Silky Smooth Highs
Silk dome tweeters reduce the severity of break-up modes resulting in silky smooth sound which is pleasing to the ear- even at high volumes

Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Secure Connection
All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty
Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty

Specifications

Woofer Size: Dual 5-1/4″ / 130mm
Woofer Construction: Injection Molded Polypropylene Cone
Tweeter: 1″ / 25mm Pivoting Silk Dome
Frequency Response: 48Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 110 (Watts)
Sensitivity: 90(dB)
Timbre: Timbre-Matched to all 600 Series Speakers
Dimensions: 15.6″ / 396mm Width x 7.76″ / 197mm Height x 3.9″ / 99mm Depth
Hole Cutout Dimensions: 6.2″ / 157.2mm Width x 14.5″ / 369mm Height
Mounting Depth: 3.8″ / 96mm

Other Specifications

Shipping Info
  • Length17.3 (Inches)
  • Width9.5 (Inches)
  • Height5.3 (Inches)
  • Weight7 (Lbs)
  • Unit of MeasureEach
  • UPC844039014535
Other Specifications
  • Woofer Size Dual 5-1/4″ / 130mm
  • Woofer Construction Injection Molded Polypropylene Cone
  • Tweeter 1″ / 25mm Pivoting Silk Dome
  • Frequency Response 48Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 110 (Watts)
  • Sensitivity 90(dB)
  • Timbre Timbre-Matched to all 600 Series Speakers
  • Dimensions 15.6″ / 396mm Width x 7.76″ / 197mm Height x 3.9″ / 99mm Depth
  • Hole Cutout Dimensions 6.2″ / 157.2mm Width x 14.5″ / 369mm Height
  • Mounting Depth 3.8″ / 96mm
Proposition 65 Warning
  • Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Warranty

Limited Lifetime
