ELAN 8-inch Intelligent Touch Panel

The new Nice/ELAN Intelligent Touch Panels provide a new way to control your smart home. Using face recognition, the panel personalizes the experience for individual users. The control panels also include integrated voice assistant technology, expanding the ways in which users can interact with their intelligent home.

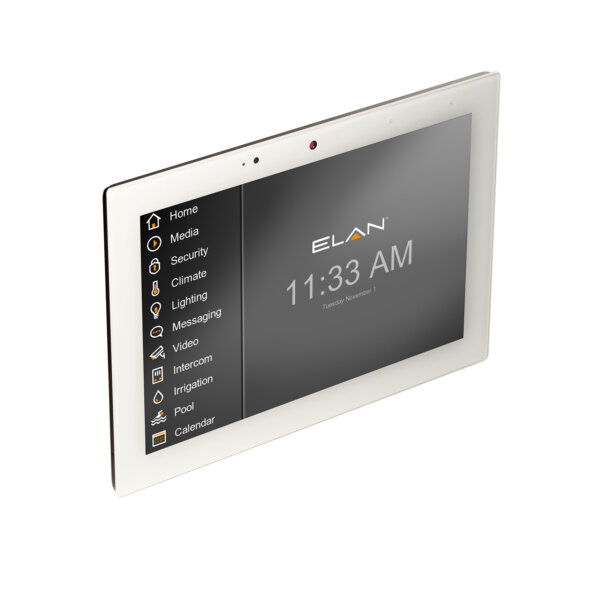

The EL-ITP-8 is an 8-inch interactive touch screen interface for Nice/ELAN controllers.

Imagine walking into the room, and the room knows it’s you… not just anyone… but you.

Welcome to the Intelligent Home.

Now with IntelliVision® video analytics, Nice/ELAN control is enhanced with the smart home control panel by using face recognition to personalize the experience. And using a dual digital microphone-array, the Nice/ELAN interactive touch screen provides an integrated voice control user interface.

The touch screen wakes as the user approaches and displays the award-winning user interface to control all of the home’s automation systems, and a seven-button fly-out keypad can operate media favorites, trigger automated lighting scenes, or through installer programmed Event Maps, control virtually anything connected to the system.

The 8-inch touch screen is elegantly designed, providing a rich user experience that is dedicated and always on.


  • Face recognition gives users a new and personalized way to control their intelligent home
  • Dual microphone array integrates a voice control interface for an Nice/ELAN system
  • Displays high resolution video and provides playback interface for Nice/ELAN surveillance
  • 8” diagonal viewable area
  • LCD touchscreen interface
  • Edge to edge glass
  • Capacitive touchscreen
  • Proximity sensor to wake from sleep without
  • touching as hand approaches

7 button flyout provides instant access to automated lighting scenes, favorites or Event Maps


Dimensions:Overall 8” wide x 5.5” height, 20.33w x 13.98h (cm), mounting depth 1” (2.54cm)
Display:8” diagonal
Resolution:1920W x 1080H
Microphone:Dual Digital MEMS Microphone-Array
Speaker:Stereo Micro Speaker, 1W
Camera:5 Mega-Pixel CMOS sensor
Network:10/100 Ethernet / 802.11 B/G/N WiFi

Other Specifications

Shipping Info
  • Length7.2 (Inches)
  • Width3.8 (Inches)
  • Height11.1 (Inches)
  • Weight2.05 (Lbs)
  • Unit of MeasureEach
  • UPC844039014719
  • Master Pack Qty10
