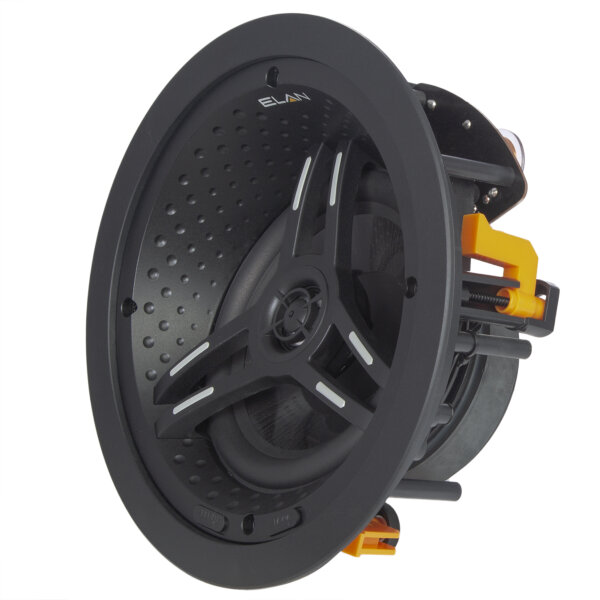

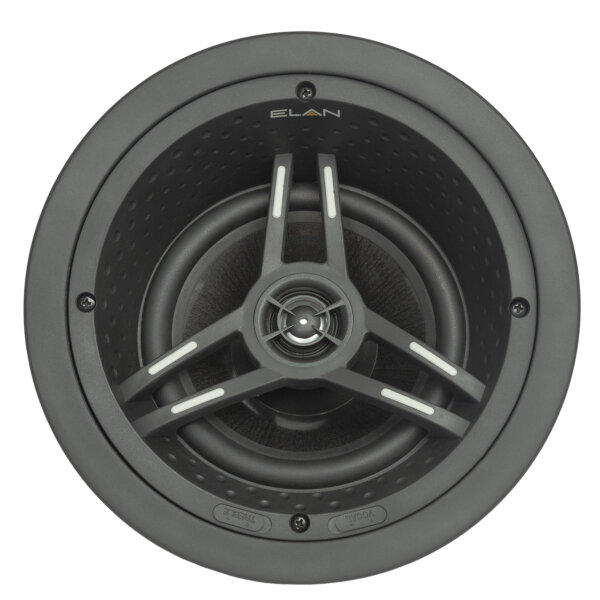

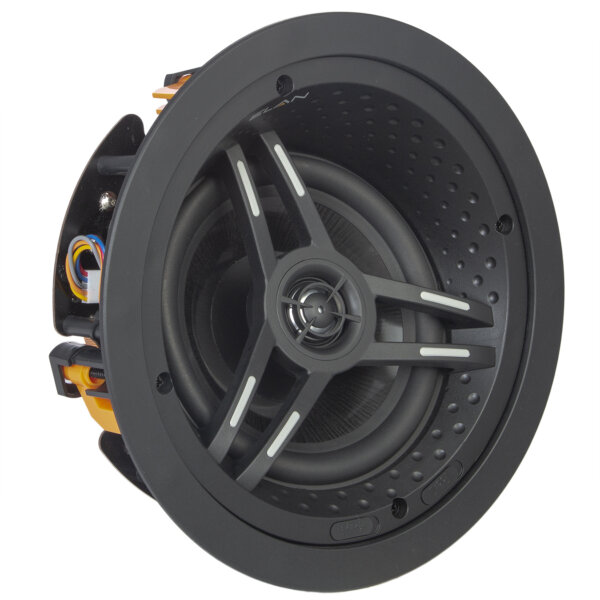

ELAN 800 Series 6-1/2″ (160mm) LCR In-Ceiling Speaker (Each)


Whether it’s high-performance distributed audio or an exceptional home theater experience, the EL-800-ICLCR-6 is the perfect choice for discerning customers. Better clarity, resolution and dynamics are achieved via an angled graphite-injected polypropylene cone woofer and aluminum dome tweeter that’s perfect for home theater as a left, center, or right speaker. It’s so versatile that it can also be used as a surround speaker or for distributed audio. Increased vocal clarity, enhanced dialogue and adjustment of post-installation tweeter performance are enabled with the front-mounted vocal and tweeter enhancement switches.


Dynamic Room Filling Angled Woofer
Low Crossover points and an angled light-weight graphite injected polypropylene cone woofer delivers dynamic sound with the widest dispersion possible

Quick, Responsive Highs
The aluminum dome tweeter is lightweight, strong and respond instantaneously to changes in music or movies

Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Vocal and Tweeter Enhancement Switch
Easily adjust tweeter performance or enhance the dialogue in movies via the Vocal and Tweeter Enhancement Swiches

Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Easy-Grip Tweeter Bridge
We know you do it! Installing speakers above your head requires a sturdy grip point and the Nice/ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Dimpled Baffle Design
The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound Secure Connection
All Nice/ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling


Woofer Size: 6-1/2″ / 160mm
Woofer Construction: Graphite Injected Polypropylene Cone
Tweeter: 1″ / 25mm Pivoting Aluminum Dome
Frequency Response: 50Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 120 (Watts)
Sensitivity: 88 (dB)
Timbre: Timbre-Matched to all 800 Series Speakers
Dimensions: 9-5/8″ / 237mm Diameter x 4.6″ / 117 mm Depth
Hole Cutout Dimensions: 8-1/4″ / 210 mm Diameter
Mounting Depth: 4.5″ / 115mm

Other Specifications

Shipping Info
  • Length10.6 (Inches)
  • Width10.6 (Inches)
  • Height5.9 (Inches)
  • Weight6.17 (Lbs)
  • Unit of MeasureEach
  • UPC844039014450
Other Specifications
  • Woofer Size 6-1/2″ / 160mm
  • Woofer Construction Graphite Injected Polypropylene Cone
  • Tweeter 1″ / 25mm Pivoting Aluminum Dome
  • Frequency Response 50Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 120 (Watts)
  • Sensitivity 88 (dB)
  • Timbre Timbre-Matched to all 800 Series Speakers
  • Dimensions 9-5/8″ / 237mm Diameter x 4.6″ / 117 mm Depth
  • Hole Cutout Dimensions 8-1/4″ / 210 mm Diameter
  • Mounting Depth 4.5″ / 115mm
Proposition 65 Warning
  • Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov


Limited Lifetime
