EL-800-IWLCR-6

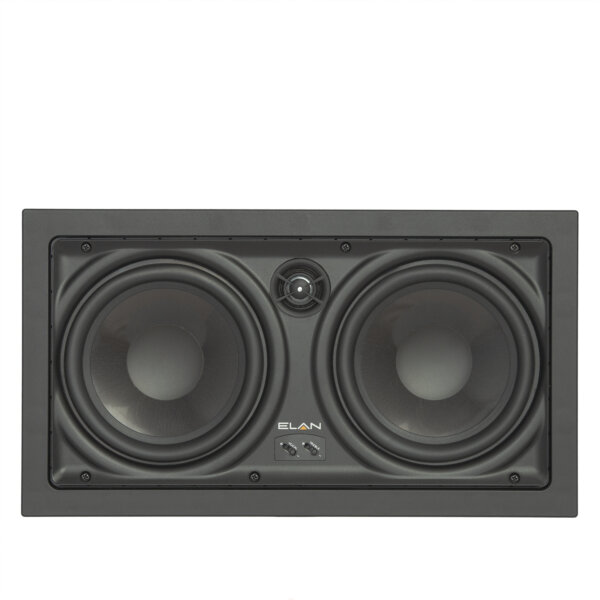

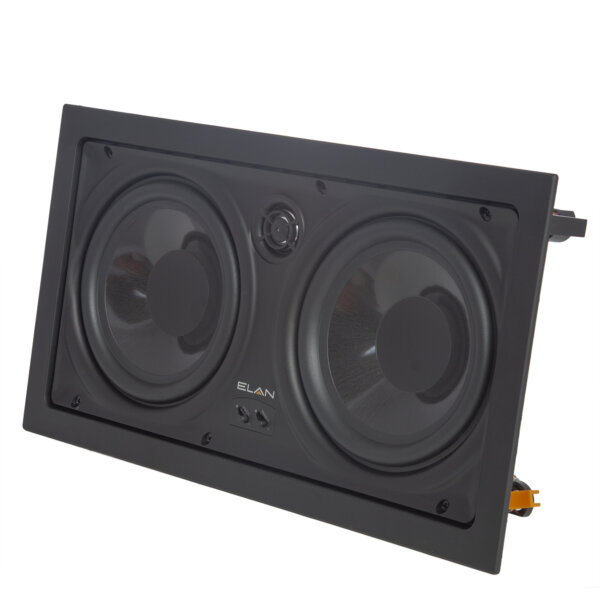

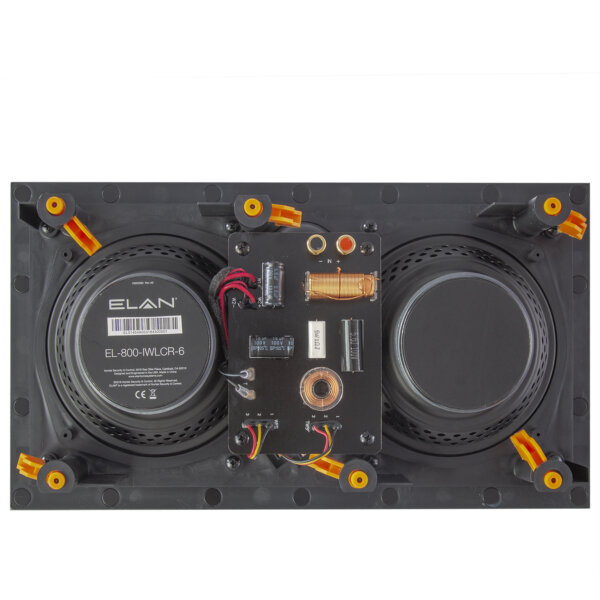

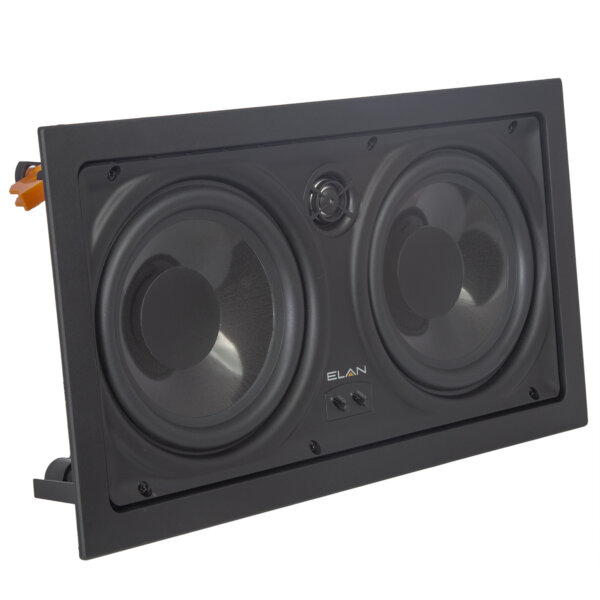

ELAN 800 Series 6-1/2″ (160mm) LCR In-Wall Speaker (Each)

Description

For both high-performance distributed audio and exceptional home theater performance, the EL-800-IWLCR-6 is the perfect choice for discerning customers. Better clarity, resolution and dynamics are achieved via a graphite-injected polypropylene cone woofer and the 1″ aluminum dome tweeter. The EL-800-IWLCR-6 is the perfect left, center, right home theater speaker. Increased vocal clarity, enhanced dialogue and adjustment of post-installation tweeter performance are enabled with the front-mounted vocal and tweeter enhancement switches.

Features

Dynamic Room Filling Sound
Low Crossover points and light-weight graphite injected polypropylene cone woofers that are mounted as close to the surface as possible deliver dynamic sound with the widest dispersion possible

Quick, Responsive Highs
Aluminum dome tweeters are lightweight, strong and respond instantaneously to changes in music or movies

Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Vocal and Tweeter Enhancement Switches
Easily adjust tweeter performance or enhance the dialogue in movies via the Vocal and Tweeter Enhancement Swiches

Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Secure Connection
All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty
Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty

Specifications

Woofer Size: Dual 6-1/2″ / 160mm
Woofer Construction: Graphite Injected Polypropylene Cone
Tweeter: 1″ / 25mm Aluminum Dome
Frequency Response: 47Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 120 (Watts)
Sensitivity: 91 (dB)
Timbre: Timbre-Matched to all 800 Series Speakers
Dimensions: 15.6″ / 396mm Width x 11″ / 280mm Height x 3.3″ / 85mm Depth
Hole Cutout Dimensions: 7.5″ / 190.5mm Width x 14.5″ / 369mm Height
Mounting Depth: 3.2″ / 82mm

Other Specifications

Shipping Info
  • Length17.4 (Inches)
  • Width10.5 (Inches)
  • Height5.3 (Inches)
  • Weight8 (Lbs)
  • Unit of MeasureEach
  • UPC844039014542
Other Specifications
  • Woofer Size Dual 6-1/2″ / 160mm
  • Woofer Construction Graphite Injected Polypropylene Cone
  • Tweeter 1″ / 25mm Aluminum Dome
  • Frequency Response 47Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 120 (Watts)
  • Sensitivity 91 (dB)
  • Timbre Timbre-Matched to all 800 Series Speakers
  • Dimensions 15.6″ / 396mm Width x 11″ / 280mm Height x 3.3″ / 85mm Depth
  • Hole Cutout Dimensions 7.5″ / 190.5mm Width x 14.5″ / 369mm Height
  • Mounting Depth 3.2″ / 82mm
Proposition 65 Warning
  • Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Warranty

Limited Lifetime
