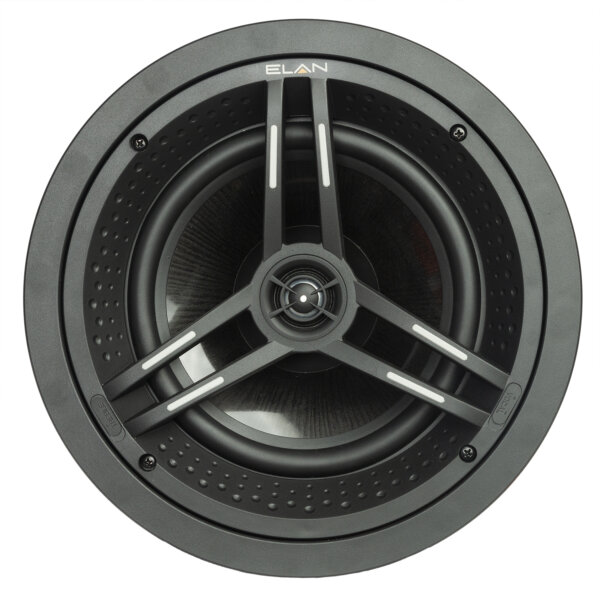

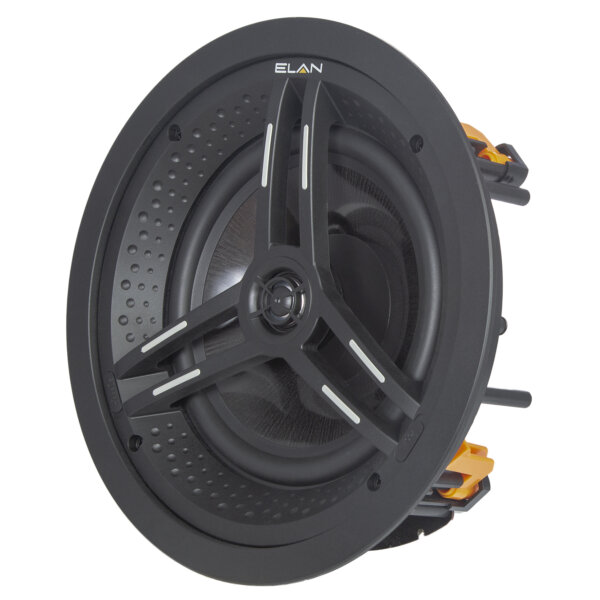

ELAN 800 Series 8″ (200mm) In-Ceiling Speakers (Pair)


Whether it’s high-performance distributed audio or an exceptional home theater experience, the EL-800-IC-8 is the perfect choice for discerning customers. Better clarity, resolution and dynamics are achieved with the graphite-injected polypropylene cone woofer and pivoting 1″ aluminum dome tweeter. Increased vocal clarity, enhanced dialogue and adjustment of post-installation tweeter performance are enabled with the front-mounted vocal and tweeter enhancement switches.


Dynamic Room Filling Sound
Low Crossover points and a light-weight graphite injected polypropylene cone woofer that’s mounted as close to the surface as possible delivers dynamic sound with the widest dispersion possible

Quick, Responsive Highs
Aluminum dome tweeters are lightweight, strong and respond instantaneously to changes in music or movies

Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

Vocal and Tweeter Enhancement Switches
Easily adjust tweeter performance or enhance the dialogue in movies via the Vocal and Tweeter Enhancement Swiches

Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor

Easy-Grip Tweeter Bridge
We know you do it! Installing speakers above your head requires a sturdy grip point and the Nice/ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

Dimpled Baffle Design
The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound

Secure Connection
All Nice/ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

Lifetime Warranty
Feel confident that All Nice/ELAN Architectural speakers are backed by a limited lifetime warranty


Woofer Size: 8″ / 200mm
Woofer Construction: Graphite Injected Polypropylene Cone
Tweeter: 1″ / 25mm Pivoting Aluminum Dome
Frequency Response: 48Hz-20kHz
Impedance: 8 (Ohms)
Power Handling: 130 (Watts)
Sensitivity: 90 (dB)
Timbre: Timbre-Matched to all 800 Series Speakers
Dimensions: 10.8″ / 275mm Diameter x 4.65″ / 118 mm Depth
Hole Cutout Dimensions: 9.75″ / 248 mm Diameter
Mounting Depth: 4.53″ / 115mm

Other Specifications

Shipping Info
  • Length13.7 (Inches)
  • Width13.1 (Inches)
  • Height13.1 (Inches)
  • Weight16.68 (Lbs)
  • Unit of MeasurePair
  • UPC844039014498
Other Specifications
  • Woofer Size 8″ / 200mm
  • Woofer Construction Graphite Injected Polypropylene Cone
  • Tweeter 1″ / 25mm Pivoting Aluminum Dome
  • Frequency Response 48Hz-20kHz
  • Impedance 8 (Ohms)
  • Power Handling 130 (Watts)
  • Sensitivity 90 (dB)
  • Timbre Timbre-Matched to all 800 Series Speakers
  • Dimensions 10.8″ / 275mm Diameter x 4.65″ / 118 mm Depth
  • Hole Cutout Dimensions 9.75″ / 248 mm Diameter
  • Mounting Depth 4.53″ / 115mm
Proposition 65 Warning
  • Warning:WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov


Limited Lifetime
