EL-IO-200

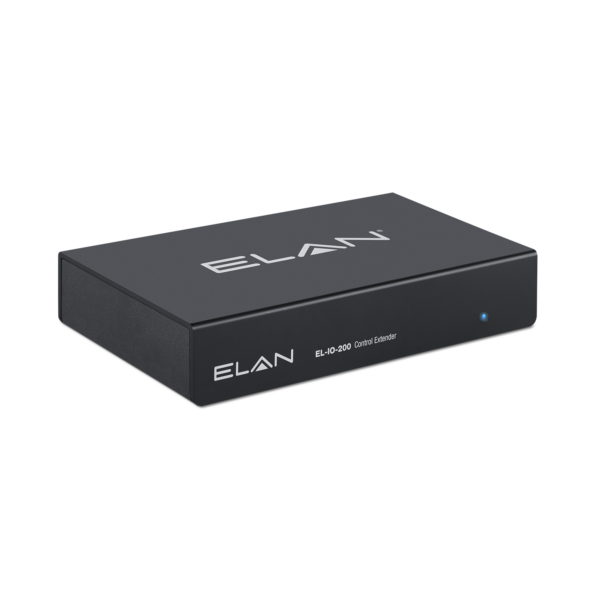

ELAN EL-IO-200 Control Extender

Bring Added Flexibility to Smart Home Integration

Description

The EL-IO-200 gives the ultimate flexibility in control. Paired with an ELAN¨ EL-SC-100, EL-SC-300, or a gSC Series controller, the EL-IO-200 extends control to additional media and smart-home devices not placed near the main controller. Setup in a bedroom, guest house, or pool house. Connected to the main controller over the network (Wired or Wirelessly), the EL-IO-200 extends RS-232, RS-485, Relays, IR, IP, and sensor inputs to control devices without the need for long cable runs or third-party extenders.

The EL-IO-200 can be ordered as a standalone device or as part of a bundle, EL-SC-200-ZW. Included in the bundle is the EL-SC-100, EL-SC-ZW, EL-IO-200, and an EL-SW-100-PRO software license, perfect for medium sized installations.

Features

  • Compatibility – Control all your devices, no matter what the format. Integrated IP, serial, and infrared control in a one-box design.
  • Connects easily to the main controller via ELAN¨ Discovery.
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to reduce the amount of cables needed.
  • Compact – The design allows for installation in cabinets, structured wiring cabinets or behind a display.
  • Network Flexibility – Connect these devices wired or wirelessly to the network for reliable control of all your devices; allowing for more installation flexibility.

Specifications

EL-IO-200 Specifications

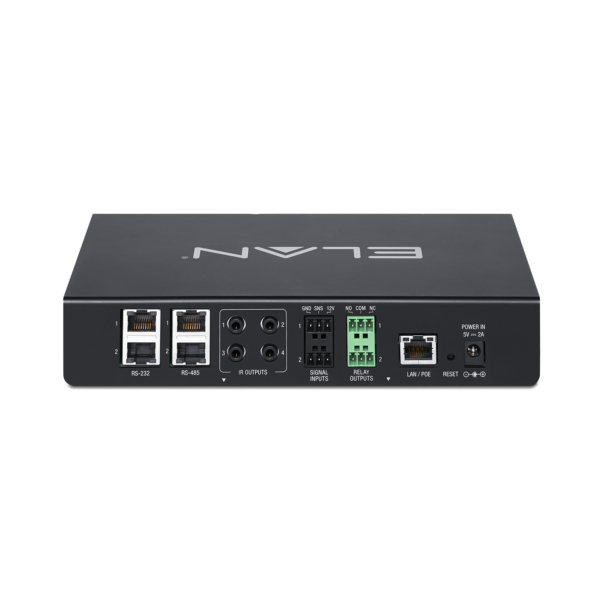

CONNECTIONS:
RS-232: (2) RJ-45 ports. Null modem configurable
RS-485: (2) RJ-45 ports
IR Output: (4) 3.5mm ports. (Mono), – 12V DC
Signal Input: (2) Terminal Block Connectors 3-pin
Relay: (2) Terminal Block Connectors 3-pin
Ethernet: (1) RJ-45 port PoE IEEE 802.3af (802.3at Type 1)
Power: (1) 120/240VAC 5V 2A Output
: PoE IEEE 802.3af (802.3at Type 1)
Wi-Fi: 2.4 / 5 GHz 802.11 b/g/n/ac

SYSTEM:
Software compatibility: Refer to the integration note for compatibility
Updates: Managed by Core Module Software

GENERAL:
Operating Temperature:: 0¡ to 40¡ C
Operating Humidity: 90% Maximum (Non-Condensing)
Mounting: Free standing, Wall mount, structured wiring cabinet
Product Dimensions: (in.) 8.46in W x 1.63in H x 5in D
: 215mm W x 41.5mm H x 127mm D)
Weight: 1.8 lbs, 11oz / 3.95kg
