EL-SC-100-BDL

ELAN EL-SC-100-BDL

Bundle: EL-SC-100-ZW System Controller with Z-wave and EL-HR10 Wi-Fi Remote Control

Description

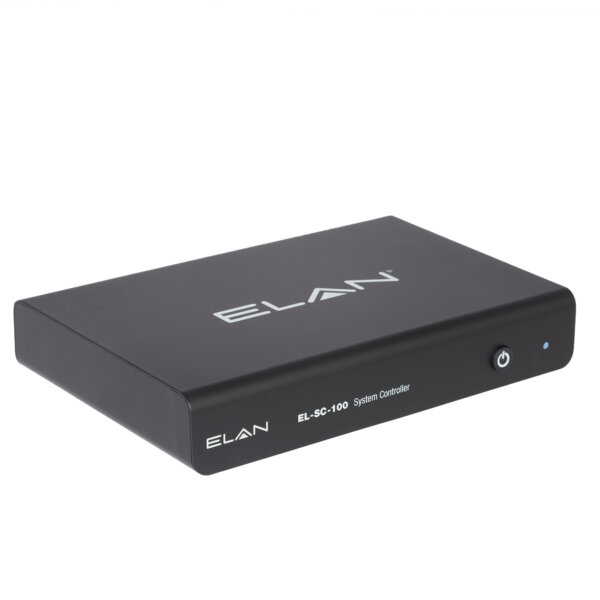

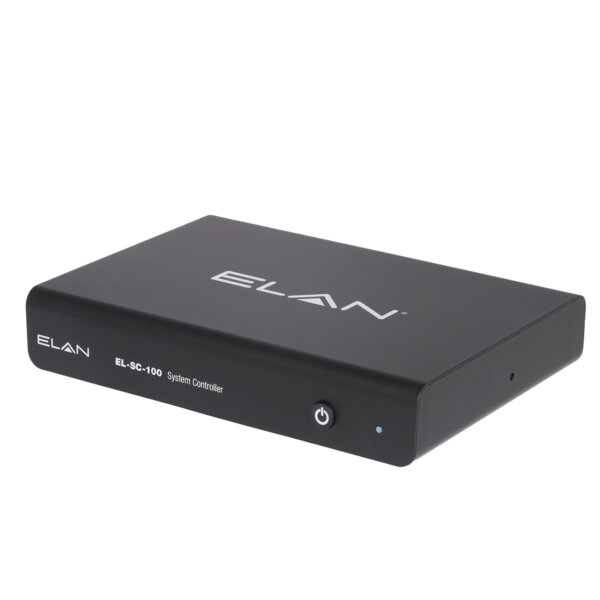

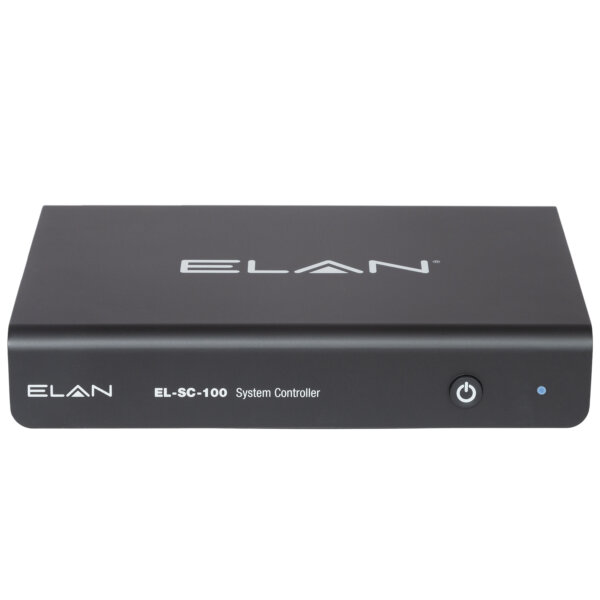

For smaller to moderate installations the EL-SC-100-ZW provides a single point of control and automation for media, climate, lighting, and more. And, the SC-100-ZW control solution paired with an HR10 remote and mobile app at this special bundled price is perfect for your customers wanting an easy way to control their media rooms. If more control is needed, add essential control of lighting, climate and door locks. An ELAN HR10 remote control and the SC-100-ZW with the integrated Z-Wave, which eliminates the need to add third-party hardware, backed by and controlled through our award-winning ELAN user interface, the all new EL-SC-100-BDL delivers an
exceptional experience.

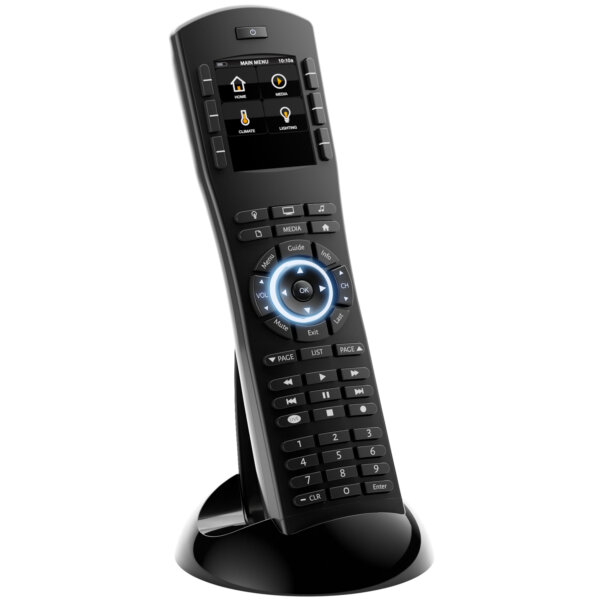

The EL-HR10 has a 2.4Ó color LCD screen with three programmable soft keys on either side. ItÕs three customizable buttons below the screen deliver instant access to music, movies and lighting, It wakes instantly as soon as it’s picked up and the updated 802.11 b/g.n Wi-Fi radio ensures a robust connection to the network at all times.

Add the EL-SC-100-ZW (With Z-Wave onboard, the EL-SC-100-ZW provides even more control options) and the EL-HR10 as an extension to a gSC2 or gSC10 system controller to create a cost effective way to add the ELAN control experience to additional media zones. For ultimate flexibility, the EL-SC-100 includes Wi-Fi for use where you donÕt have a convenient wire path, or can be added to a Power over Ethernet (PoE) network to receive both power and data connections, reducing wiring clutter.

Features

EL-SC-100-ZW FEATURES

  • Compatibility – Control all your devices, no matter what the format. Integrated IP, serial, and infrared control in a one-box design.
  • Multi-Platform Experience – Themes and layouts will be consistent across all your devices, whether youÕre using the ELAN¨ Touch Panels or Mobile and Desktop Apps.
  • Compact – The design allows for installation in cabinets, structured wiring cabinets or behind a display.
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to greatly reduce the amount of cables needed.
  • Z-WAVE¨ Integration – Included Z-Wave functionality enables control and automation of compatible Z-Wave devices.
  • Network Flexibility – Connect these devices wired or wirelessly to the network for reliable control of all your devices; allowing for more installation flexibility.
  • A great partner – Pair with the EL-IO-200 Control Extender on larger or decentralized installations.

EL-HR-10 Features

  • Fast, responsive high-resolution screen
  • Soft key control on either side of display
  • Easy to use and simple to configure
  • Controls all AV sources with metadata feedback for supported devices
  • Controls lighting and climate with metadata feedback
  • 46 buttons for common functions found on todayÕs sources
  • Three assignable buttons
  • Noiseless accelerometer for activating LCD and backlight.

Specifications

SC-100-ZW SPECIFICATIONS

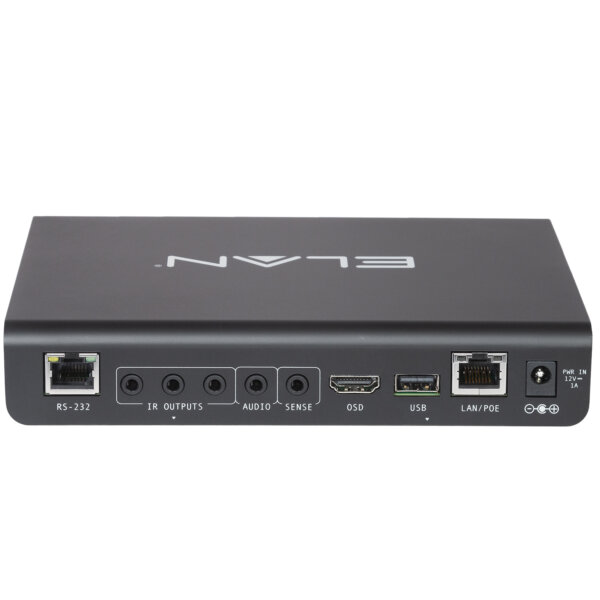

CONNECTIONS:
RS-232: (1) RJ-45 Connector
ELAN Sense: (1) 3.5mm Connector
IR Output: (3) 3.5mm Connectors (Mono), – 12V DC
Audio: (1) 3.5mm Connectors (Stereo)
On-Screen Display: (1) HDMI Female Connector
USB: (1) USB A Connector
Ethernet: (1) RJ-45
Wi-Fi: 2.4 / 5 GHz 802.11 b/g/n
:
SYSTEM:
Software compatibility: Requires Core Module 8.4 or above
Updates: Managed by Core Module software
:
GENERAL:
Power: 120/240VAC Input 12VDC 1A output
: PoE IEEE 802.3af (802.3at Type 1)
Operating Temperature: 0¡ to 40¡ C
Operating Humidity: 90% Maximum (Non-Condensing)
Mounting: Free standing, Wall mount, Structured wiring cabinet
Product Dimensions: (in.)6.975w x 1.25h x 5d
: (mm.) 176w x 31h x 126d
Product Weight: 0.8 lb / 0.36 Kg

EL-HR10
SHIPPING INFO:
Length: 12.4 (Inches)
Width : 8.5 (Inches)
Height : 5.2 (Inches)
Weight: 2.3 (Lbs)
Unit of Measure: Each
Master Pack Qty: 10
:
OTHER SPECIFICATIONS:
LCD Screen size : 2.4Ó diagonal (61 mm)
LCD Viewing angle: 130¡ (up/down/left/right)
LCD Type: 18 bit, 2.4Ó Active Matrix LCD
LCD Colors: 262K
Download Port : Micro-USB
Power Requirements: 5 V 2.00 A
Dimensions Ð Remote : (in.) 2.50 W x 9.59 H x 1.26 D (mm) 63.4 W x 243 H x 32 D
Dimensions Ð Cradle: (in.) 4 Diameter x 4.88 H (mm) 101.60 W x 124.00 H
Product Weight: 8.3 oz. (235.3 g)
Charging Cradle Weight: 8.1 oz. (229.6 g)
Shipping Weight: 2.3 lbs. / 1.04 kg

Z-WAVE TRANSCEIVER
Frequency Band: 868.4MHz – 916MHz
RZ-Wave: 700 Series
Supported Regions: Multi-Region
Connection: USB / ELAN Controller
Power Consumption: 5V
Power Connection: USB / ELAN Controller
Operating Temperature: 32¡ to 104¡F / 0¡ to 40¡C
Operating Humidity: 90% Maximum (Non-Condensing)
Product Dimensions: 1.5w x 1.5h x .5d in. / 40w x 40h x 17d mm
Connector Cable Length: 6.5 feet / 2 meters

Other Specifications

Warranty

2 Year
