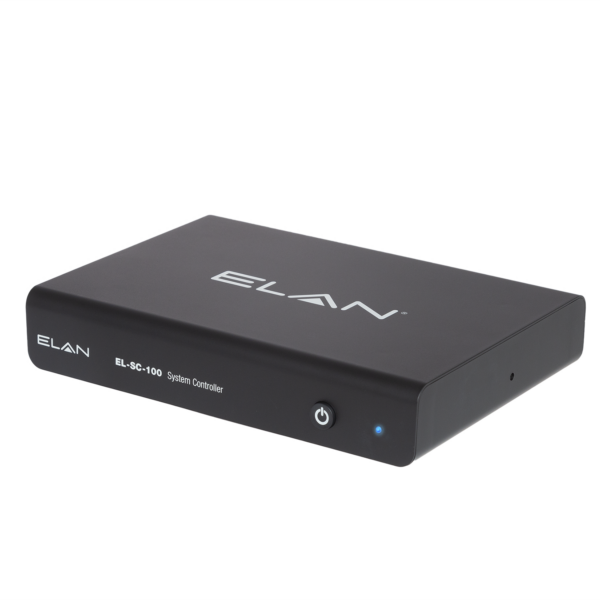

ELAN EL-SC-100 System Controller with Z-Wave

The EL-SC-100-ZW provides a single point of control and automation for media, climate, lighting, door locks, and more.


The ELAN¨ SC-100-ZW System Controller offers robust performance at a price point that creates new opportunities for more smaller setups. For smaller to moderate installations the EL-SC-100-ZW provides a single point of control and automation for media, climate, lighting, security, surveillance and more. Pair with the EL-IO-200 as a cost-effective way of adding control connections to another area.

The ELAN SC-100-ZW includes integrated Z-Wave, which eliminates the need to add third-party hardware. Backed by and controlled through our award-winning ELAN user interface, the EL-SC-100-ZW delivers an exceptional experience.



  • Compatibility – Control all your devices, no matter what the format. Integrated IP, serial, and infrared control in a one-box design.
  • Multi-Platform Experience – Themes and layouts will be consistent across all your devices, whether youÕre using the ELAN¨ Touch Panels or Mobile and Desktop Apps.
  • Compact – The design allows for installation in cabinets, structured wiring cabinets or behind a display.
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to greatly reduce the amount of cables needed.
  • Z-WAVE¨ Integration – Included Z-Wave functionality enables control and automation of compatible Z-Wave devices.
  • Network Flexibility – Connect these devices wired or wirelessly to the network for reliable control of all your devices; allowing for more installation flexibility.
  • A great partner – Pair with the EL-IO-200 Control Extender on larger or decentralized installations.

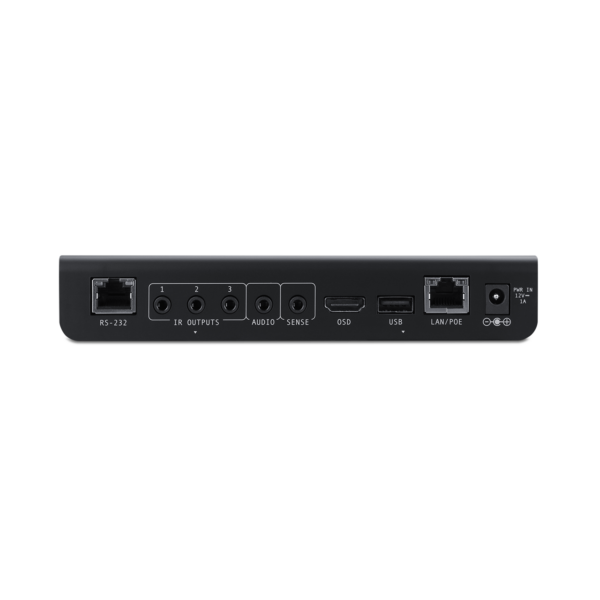

EL-SC-100 Specifications$$
RS-232$$(1) RJ-45 Connector
ELAN Sense$$(1) 3.5mm Connector
IR Output$$(3) 3.5mm Connectors (Mono), – 12V DC
Audio$$(1) 3.5mm Connectors (Stereo)
On-Screen Display$$(1) HDMI Female Connector
USB$$(1) USB A Connector
Ethernet$$(1) RJ-45
Wi-Fi$$2.4 / 5 GHz 802.11 b/g/n
Software compatibility$$Requires Core Module 8.4 or above
Updates$$Managed by Core Module software
Power$$120/240VAC Input 12VDC 1A output
$$ PoE IEEE 802.3af (802.3at Type 1)
Operating Temperature$$0¡ to 40¡ C
Operating Humidity$$90% Maximum (Non-Condensing)
Mounting$$Free standing, Wall mount, Structured wiring cabinet
Product Dimensions$$(in.)6.975w x 1.25h x 5d
$$ (mm.) 176w x 31h x 126d
Product Weight$$0.8 lb / 0.36 Kg
Frequency Band$$868.4MHz – 916MHz

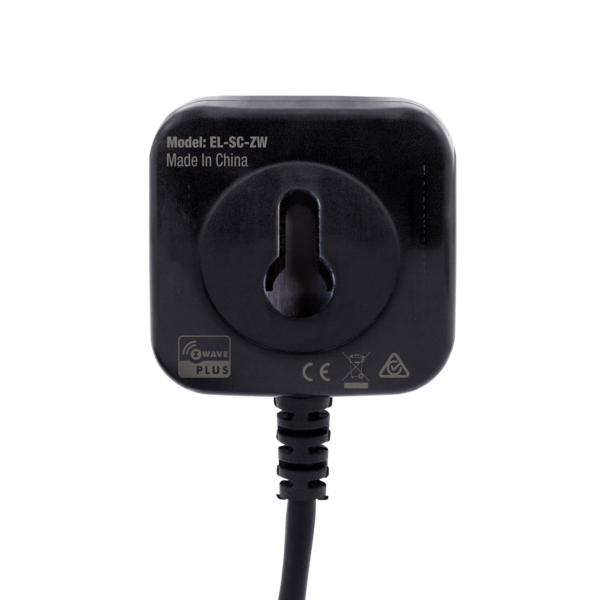

RZ-Wave 700 Series
Supported Regions$$Multi-Region
Connection$$USB / ELAN Controller
Power Consumption$$5V
Power Connection$$USB / ELAN Controller
Operating Temperature$$32¡ to 104¡F / 0¡ to 40¡C
Operating Humidity$$90% Maximum (Non-Condensing)
Product Dimensions$$1.5w x 1.5h x .5d in. / 40w x 40h x 17d mm
Connector Cable Length$$6.5 feet / 2 meters

Other Specifications


2 Year
