ELAN EL-SC-200 – Serial Controller with Z-Wave

A Control Bundle
Perfect for Moderate
Sized Installations

Description

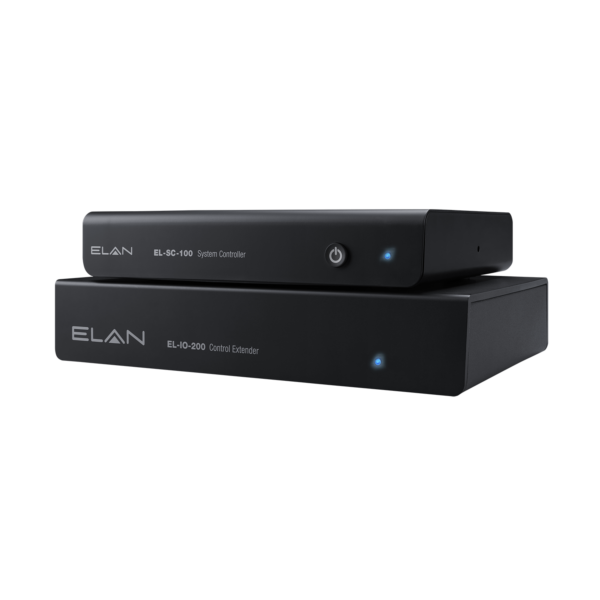

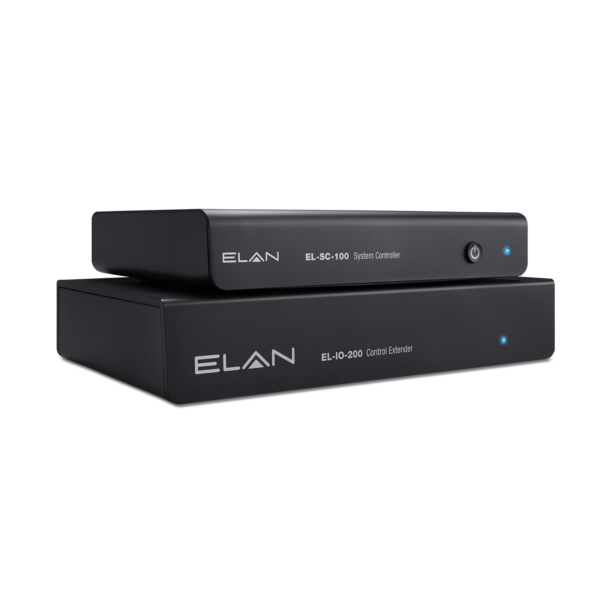

The ELAN¨ EL-SC-200-ZW System Control Bundle is perfect for
moderate sized or decentralized installations. The EL-SC-200-ZW
bundles our EL-SC-100-ZW System Controller, EL-IO-200 Control
Extender and ties it all together with an EL-SW-100-PRO license
to seamlessly provide control and automation for media, climate,
lighting, security, surveillance and more.

And now with Z-Wave onboard, the ELAN SC-200-ZW eliminates the
need for additional third-party hardware to control Z-Wave devices.
Backed by and controlled through our award-winning user interface,
the EL-SC-200-ZW delivers an exceptional experience.

Features

FEATURES

  • Compatibility – Control all your devices, no matter what the format.
  • Multi-platform Experience – Themes and layouts will be consistent across all devices, whether youÕre using the ELAN Touch Panels or Mobile and Desktop Apps.
  • Compact – The design allows for installation in cabinets, structured
  • PoE Ready – With Power over ethernet capability built in you can utilize your wired network setup to reduce the amount of cables
    needed.
  • Z-WAVE¨ Integration – Included Z-Wave functionality enables
    control and automation of compatible Z-Wave devices.
  • OSD – Connection for OSD to control your ELAN system from any display.
  • Audio Output – Allows video doorbells to play chimes throughout the home audio system
  • Network Flexibility – Connect these devices wired or wirelessly to the network for reliable control of all your devices; allowing for more installation flexibility.

Specifications

EL-IO-200 Specifications

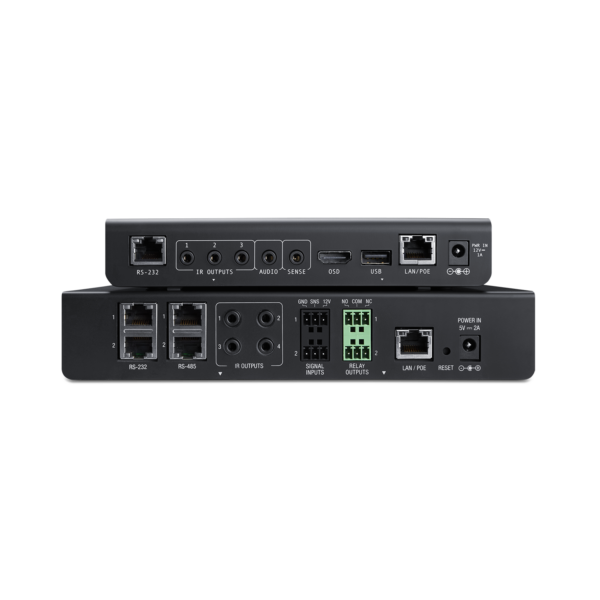

CONNECTIONS$$
RS-232$$ (2) RJ-45 ports. Null modem configurable
RS-485$$ (2) RJ-45 ports
IR Output$$ (4) 3.5mm ports. (Mono), – 12V DC
Signal Input$$ (2) Terminal Block Connectors 3-pin
Relay$$ (2) Terminal Block Connectors 3-pin
Ethernet$$ (1) RJ-45 port PoE IEEE 802.3af (802.3at Type 1)
Power$$ (1) 120/240VAC 5V 2A Output
$$ PoE IEEE 802.3af (802.3at Type 1)
Wi-Fi$$ 2.4 / 5 GHz 802.11 b/g/n/ac
$$
SYSTEM$$
Software compatibility$$ Refer to the integration note for compatibility
Updates$$ Managed by Core Module Software
$$
GENERAL$$
Operating Temperature:$$ 0¡ to 40¡ C
Operating Humidity$$ 90% Maximum (Non-Condensing)
Mounting$$ Free standing, Wall mount, structured wiring cabinet
Product Dimensions$$ (in.) 8.46in W x 1.63in H x 5in D
$$ 215mm W x 41.5mm H x 127mm D)
Weight$$ 1.8 lbs, 11oz / 3.95kg

EL-SC-100 Specifications
CONNECTIONS$$
RS-232$$(1) RJ-45 Connector
ELAN Sense$$(1) 3.5mm Connector
IR Output$$(3) 3.5mm Connectors (Mono), – 12V DC
Audio$$(1) 3.5mm Connectors (Stereo)
On-Screen Display$$(1) HDMI Female Connector
USB$$(1) USB A Connector
Ethernet$$(1) RJ-45
Wi-Fi$$2.4 / 5 GHz 802.11 b/g/n
$$
SYSTEM$$
Software compatibility$$Requires Core Module 8.4 or above
Updates$$Managed by Core Module software
$$
GENERAL$$
Power$$120/240VAC Input 12VDC 1A output
$$ PoE IEEE 802.3af (802.3at Type 1)
Operating Temperature$$0¡ to 40¡ C
Operating Humidity$$90% Maximum (Non-Condensing)
Mounting$$Free standing, Wall mount, Structured wiring cabinet
Product Dimensions$$(in.)6.975w x 1.25h x 5d
$$ (mm.) 176w x 31h x 126d
Product Weight$$0.8 lb / 0.36 Kg

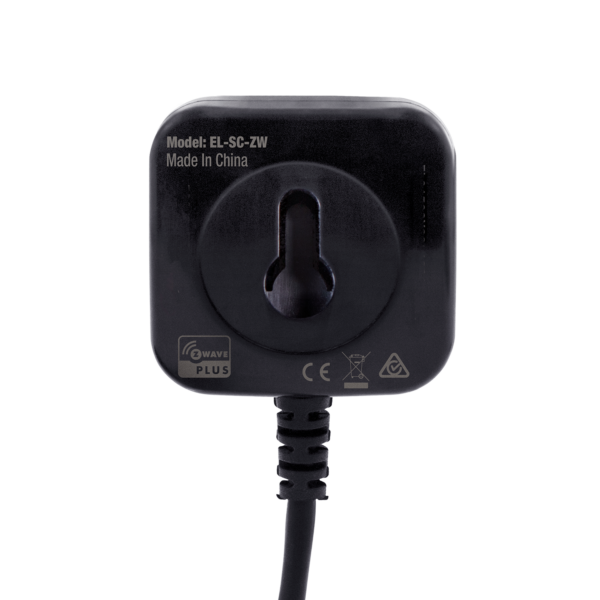

Z-WAVE TRANSCEIVER
Frequency Band$$868.4MHz – 916MHz
RZ-Wave 700 Series
Supported Regions$$Multi-Region
Connection$$USB / ELAN Controller
Power Consumption$$5V
Power Connection$$USB / ELAN Controller
Operating Temperature$$32¡ to 104¡F / 0¡ to 40¡C
Operating Humidity$$90% Maximum (Non-Condensing)
Product Dimensions$$1.5w x 1.5h x .5d in. / 40w x 40h x 17d mm
Connector Cable Length$$6.5 feet / 2 meters
