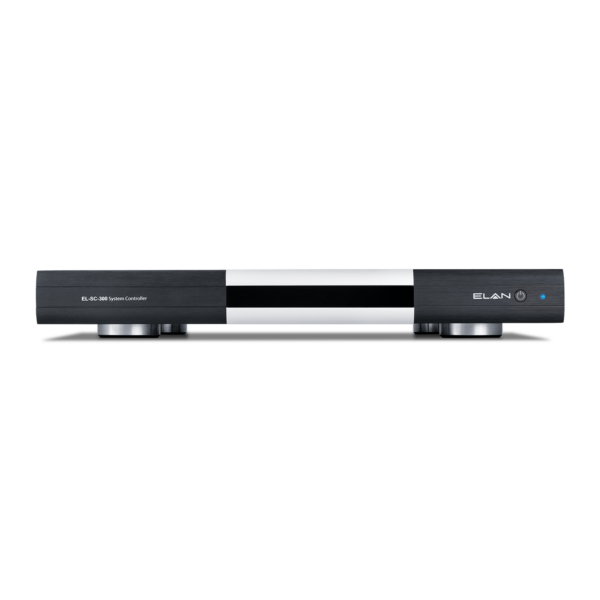

ELAN EL-SC-300 System Controller with Z-Wave

A Flagship Controller for Your
Most Demanding Installations

Description

The EL-SC-300-ZW is the premium control center for the connected home. It brings together all your intelligent devices and allows them work together in one seamless system. Control media, lighting, climate, pool/spa, irrigation, and more through a single app interface.

The EL-SC-300-ZW is the flagship ELAN¨ controller for your most demanding installations. With options for RS-232, RS-485, Relays, IR, IP, input sensors, and Z-Wave control, the EL-SC-300-ZW gives you the ultimate flexibility for a system of virtually any size.

Features

EL-SC-300-ZW Features

  • Compatibility – Control all of your devices, no
    matter what the format. Integrated IP, serial,
    and infrared control in a one-box design
  • Multi-platform Experience – Themes and
    layouts will be consistent across all devices,
    whether youÕre using the ELAN¨ Touch Panels
    or Mobile or Desktop Apps.
  • Z-WAVE¨ Integration – Included Z-Wave
    functionality enables control and automation
    of compatible Z-Wave devices.
  • OSD – Connection for OSD to control your
    ELAN system from any display.
  • Audio Output – Allows video doorbells to play
    chimes throughout the home audio system
  • PoE Ready – With Power over ethernet
    capability built in you can utilize your wired
    network setup to reduce the amount of cables
    needed.
  • Powerful -The EL-SC-300-ZW packs amazing
    punch into a single rack space; rack mount
    hardware included.
  • A great partner – Pair with the EL-IO-200
    Control Extender on larger or decentralized
    installations.

Specifications

SC-300-ZW SPECIFICATIONS
CONNECTIONS$$
RS-232$$ (8) RJ-45 ports. Null modem configurable
RS-485$$ (2) RJ-45 ports
IR Output$$ (12) 3.5mm ports. (Mono), – 12V DC
Signal Input$$ (4) Terminal Block Connectors 3-pin
Relay$$(6) Terminal Block Connectors 3-pin
HDMI$$ (1) For on-screen display 1.4b
USB$$ (1) 3.0 USB / (1) 2.0 USB
RCA Audio$$ (2) Stereo audio out
Ethernet$$ (1) RJ-45 port
Wi-Fi$$ 2.4 / 5 GHz 802.11 b/g/n/ac
$$
SYSTEM$$
Software Compatibility$$ Requires Core Module 8.6 or above
Updates$$ Managed by Core Module Software
$$
GENERAL$$
Power$$ 120/240VAC Input 12VDC 1A output
PoE$$ IEEE 802.3af (802.3at Type 1)
Operating Temperature$$ 0¡ to 40¡ C
Operating Humidity$$ 90% Maximum (Non-Condensing)
Mounting$$ Free standing, Rack mount
Product Dimensions$$
With feet:
$$17Ó W x 2.25Ó H x 14Ó D
$$ (431.8mm W x 57.2mm H x 355.6mm D)
$$Without feet, with rack mount brackets:
$$ 19Ó W x 1.75Ó H x 14Ó D
$$ 482.6mm W x 44.45mm H x 355.6mm D
Weight$$ 8 lbs, 11oz / 3.95kg

Z-WAVE TRANSCEIVER
Frequency Band$$ 868.4MHz – 916MHz
RZ-Wave$$ 700 Series
Supported Regions$$ Multi-Region
Connection$$ USB / ELAN Controller
Power Consumption$$ 5V
Power Connection$$ USB / ELAN Controller
Operating Temperature$$ 32¡ to 104¡F / 0¡ to 40¡C
Operating Humidity$$ 90% Maximum (Non-Condensing)
Product Dimensions$$ 1.5w x 1.5h x .5d in. / 40w x 40h x 17d mm
Connector Cable Length$$ 6.5 feet / 2 meters
