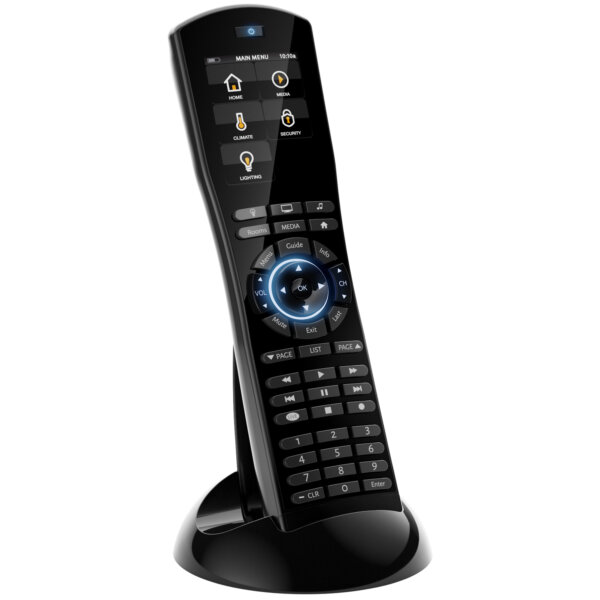

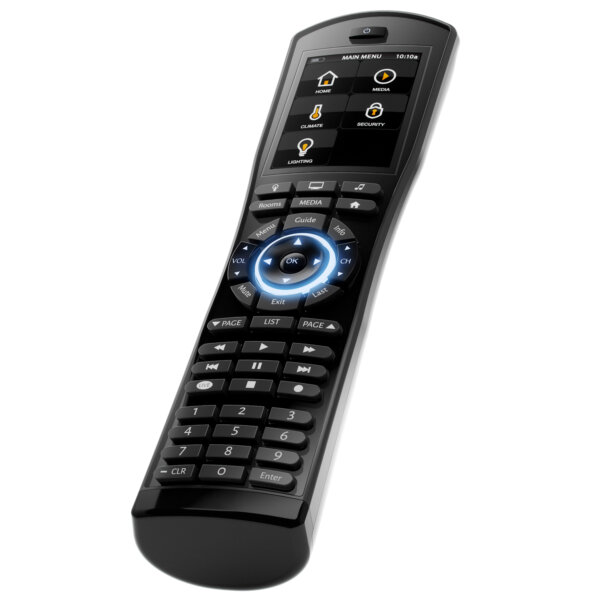

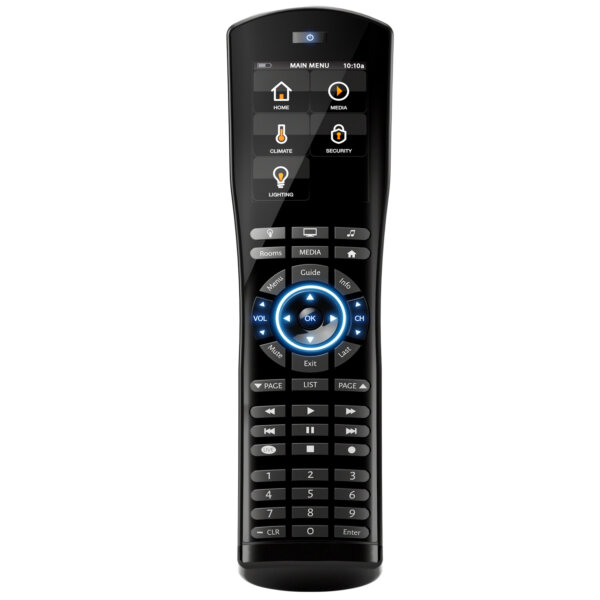

ELAN HR30 Wi-Fi Handheld Remote Control with Charging Station

EL-HR30

The HR30 provides whole home system control with instant feedback and control of entertainment lighting, security, and climate.

Description

This sleek WiFi remote leads with a 2.8″ touch screen mounted flush for a remarkably sophisticated feel while navigating the intuitive ELAN UI. Surf favorite channels, monitor security system, lock and unlock doors, dim lights, adjust the temperature and more, all with a simple touch. The screen enables a swipe left or right to quickly access multiple zones. Below it are three newly designed hard buttons, each of which can be personalized for one-button access to key systems. The 46 hard buttons make using the HR30 as incredibly robust as it is easy and intuitive. The HR30 features an updated 802.11 b/g.n radio and a built-in accelerometer to instantly wake the moment it’s needed.

Features

  • 2.8” Color Touch Screen supports swipe to easily access additional screens
  • 3 Personalized Buttons for instant access to Audio, Video, and Lighting devices
  • Fast, responsive high-resolution screen
  • Controls all AV sources with metadata feedback for supported devices
  • Controls security, lighting and climate with metadata feedback
  • 46 backlit, hard buttons for common functions found on today’s sources
  • Noiseless accelerometer for activating LCD and backlight
  • Slim profile for ease of use and comfort
  • Uses Wi-Fi for communication
  • IR blaster for line-of-sight control
  • Quick and easy programming using the ELAN Configuration Software
  • Compatible with all current ELAN System Controllers
  • Ships standard with battery, charging base, power supply, and USB cable

Specifications

Screen size: 2.8″ diagonal (61 mm)
Viewing angle : 130° (up/down/left/right)
LCD Type: 18 bit, 2.8″ Color LCD Touch Screen
Colors: 262K
Download Port: Micro-USB
Power Requirements: 5 V 2.00 A
Dimensions Remote: (in.) 2.50 W x 9.59 H x 1.26 D (mm) 63.4 W x 243 H x 32 D
Dimensions Cradle: (in.) 4 Dia x 4.88 H (mm) 101.60 Dia x 124.00 H
Product Weight : 8.3 oz. (235.3 g)
Charging Cradle Weight : 8.1 oz. (229.6 g)
Shipping Weight: 2.3 lbs. / 1.04 kg

Other Specifications

Shipping Info
  • Length8.4 (Inches)
  • Width5.2 (Inches)
  • Height12.2 (Inches)
  • Weight2.2 (Lbs)
  • Unit of MeasureEach
  • UPC844039013651

Warranty

2-Year Warranty
