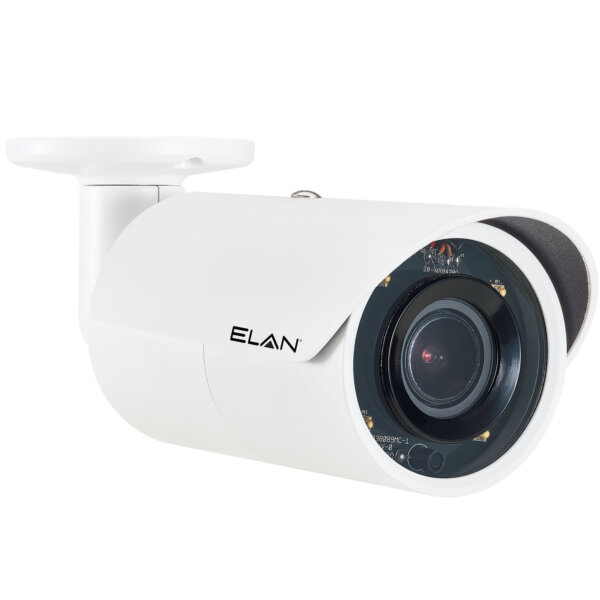

ELAN Surveillance IP Autofocus 4MP Bullet Camera with Advanced Analytics (White)


The Nice/ELAN EL-IP-OBA4, available in White and Black, is a versatile 4MP bullet camera with auto-focus and advanced object analytics to elevate the intelligent home and business. The relatively visible bullet form factor can have an effective deterrent effect in places where you want people to know that they can be seen. It’s ideal to survey a designated area such as a driveway, garage, front door, back door, stairway, hallway or entryway.

Flexible in placement and easy to install, the EL-IP-OBA4 can be installed on walls, soffits, or under eaves. Its auto-focus feature enables final focusing from within the Nice/ELAN App, rather than up on the ladder. The bullet camera has a flat lens, independent IR sensor for distortion-free images, plus superior IR capture with no IR bounce – all in an attractive housing.

Video Analytics
Advanced Object Detection, Person and Vehicle Classification greatly reduces false positive alerts. And Push Messages can be easily set up to alert a user’s mobile device of events around the home.

Like all other Nice/ELAN Surveillance products, the EL-IP-OBA4 is embedded with the Nice/ELAN beacon, making it effortless to install in any Nice/ELAN system. The Nice/ELAN Configurator scans the network and automatically discovers available devices. With a click, the camera is configured and installed in the Nice/ELAN system. We’ve eliminated the need to use a secondary application to setup the camera outside of Nice/ELAN, saving substantial time on every surveillance installation.

Comprehensive Surveillance
ELAN Surveillance cameras work seamlessly with the Nice/ELAN Network Video Recorder (EL-NVR Series) to create a surveillance ecosystem that excels in every application. Cameras and NVR can be fully managed from within the Nice/ELAN App, simplifying the user experience.


  • Auto-Discover/Auto-Configure
  • Advanced Object Detection, Person & Vehicle Classification
  • 4 Megapixel
  • 30m IR Distance
  • Motorized Autofocus
  • IP66 Weather Resistant
  • Automatic Gain Control (AGC)
  • Operating Temperature: -40°F–122°F
  • Max Frame Rate: Up to 20 FPS@2688×1520
  • 3D Digital Noise Reduction
  • 2D Wide Dynamic Range
  • Power Over Ethernet (PoE)


Power Consumption: DC12V, 7.4W / PoE, 9W
Dimensions: ?4.7 x 4.17
Weight: 0.96lbs
Operating Temperature: -40°F – 122°F
Focal Length: 2.8-8mm
IR Range: 30M
Video Analytics: Survey Area, Object Detection, Person Classification, Vehicle Classification
Video Compression: Smart H.264/ H.264 High/Main Profile, Motion JPEG
Maximum Frame Rate: H.264 / Motion JPEG: up to 20 fps @ 2688×1520
2D WDR: Off / Auto / x2 / x3 / x4
High Dynamic Range (HDR): Up to 100dB
Privacy Masking: Off / On (4 independent areas)
Sense Up: Off / 1 frame / 2 frames
Sense Up+: Yes
Auto Gain Control: 36 dB variable gain
