ELAN Surveillance IP Motorized Autofocus 4MP Outdoor Dome Camera with IR (Black)

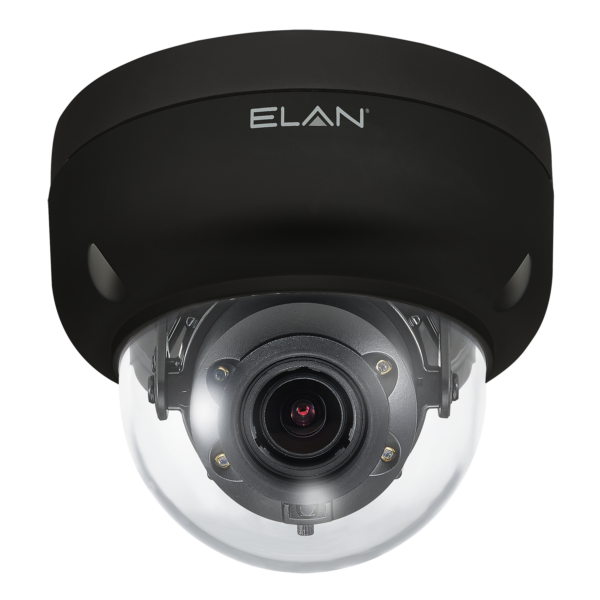

The Nice/ELAN EL-IP-ODA4, available in White and Black, is a versatile 4MP dome camera with auto-focus and advanced object analytics to elevate the intelligent home and business. It’s the ideal choice for outdoor or indoor applications requiring the ability to watch a wide area and the focusing power of an auto-focus lens. The EL-IP-ODA4 can cover a large backyard deck as well as a gate that is 50 feet away.

The EL-IP-ODA4 dome camera is quick and easy to install, and its auto-focus feature enables final focusing from within the Nice/ELAN App, rather than up on the ladder. The dome camera is intended for ceiling mount, and has a flat lens, independent IR sensor for distortion-free images, plus superior IR capture with no IR bounce – all in an attractive housing.

Video Analytics
Advanced Object Detection, Person and Vehicle Classification greatly reduces false positive alerts. And Push Messages can be easily set up to alert a user’s mobile device of events around the home.

Like all other Nice/ELAN Surveillance products, the EL-IP-ODA4 is embedded with the Nice/ELAN beacon, making it effortless to install in any Nice/ELAN system. The Nice/ELAN Configurator scans the network and automatically discovers available devices. With a click, the camera is configured and installed in the Nice/ELAN system. We’ve eliminated the need to use a secondary application to setup the camera outside of Nice/ELAN, saving substantial time on every surveillance installation.

Comprehensive Surveillance
ELAN Surveillance cameras work seamlessly with the Nice/ELAN Network Video Recorder (EL-NVR Series) to create a surveillance ecosystem that excels in every application. Cameras and NVR can be fully managed from within the Nice/ELAN App, simplifying the user experience.


  • Auto-Discover/Auto-Configure
  • Advanced Object Detection, Person & Vehicle Classification
  • 4 Megapixel
  • 30m IR Distance
  • Motorized Autofocus
  • IP66 Weather Resistant
  • Automatic Gain Control (AGC)
  • Operating Temperature: -40°F–122°F
  • Max Frame Rate: Up to 20 FPS@2688×1520
  • 3D Digital Noise Reduction
  • 2D Wide Dynamic Range
  • Power Over Ethernet (PoE)


Power Consumption: DC12V, 7.4W / PoE, 9W
Dimensions: 4.7” x 4.17”
Weight: 0.96lbs
Operating Temperature: -40°F – 122°F
Focal Length: 2.8-8mm
IR Range: 30M
Video Analytics: Survey Area, Object Detection, Person Classification, Vehicle Classification
Video Compression: Smart H.264/ H.264 High/Main Profile, Motion JPEG
Maximum Frame Rate: H.264 / Motion JPEG: up to 20 fps @ 2688×1520
2D WDR: Off / Auto / x2 / x3 / x4
High Dynamic Range (HDR): Up to 100dB
Privacy Masking: Off / On (4 independent areas)
Sense Up: Off / 1 frame / 2 frames
Sense Up+: Yes
Auto Gain Control: 36 dB variable gain

Other Specifications
