TP7RBKT-B

Flush Mount/Retro Kit for TP7 in Black

The TP7RBKT-B flush mount/retro-fit installation kit allows for clean and smooth instalation of the Nice/ELAN, Niles, or SpeakerCraft 7″ Touch Panels.

Description

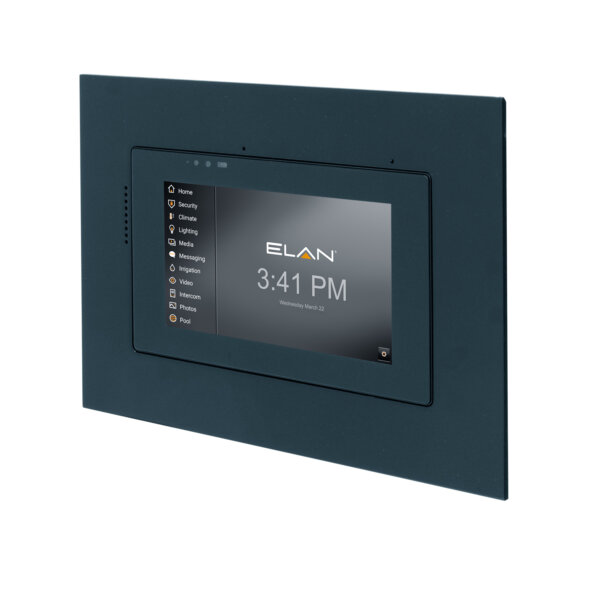

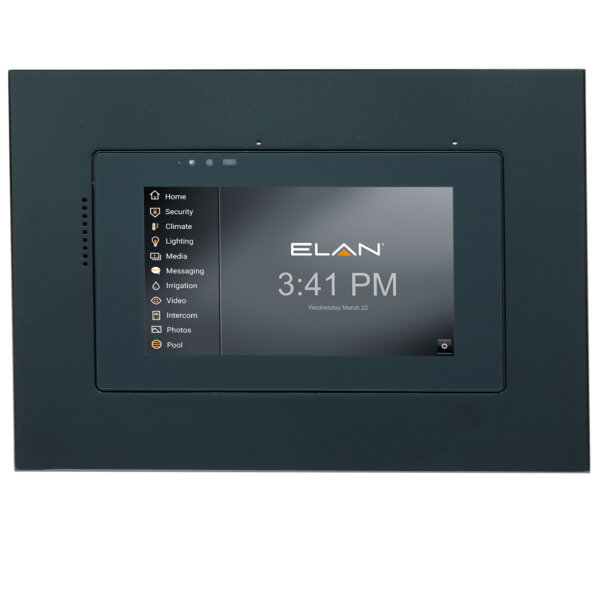

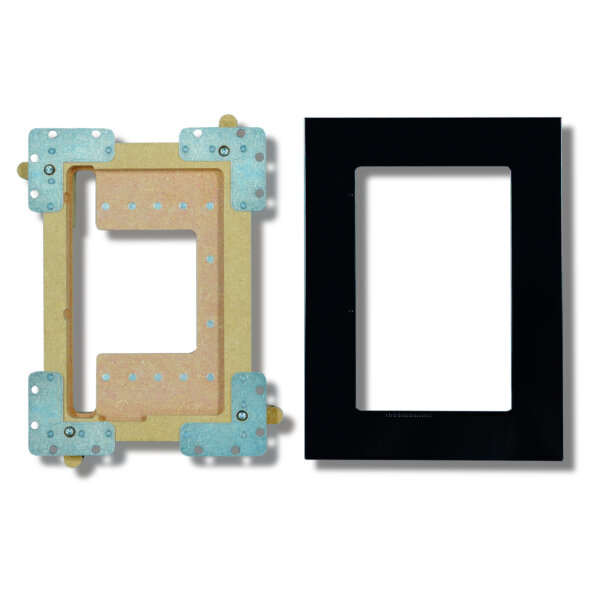

The TP7RBKT-B Retrofit Bracket is a black adapter for in-wall nearly flush retrofit installation of any TP7 touch screen. The TP4RBKT-B Retrofit Bracket securely mounts the TP7 touch screen while allowing easy insertion, removal and operation.

Key features and benefits:

  • Nearly flush with the wall (0.16 in. [4mm] thick on-wall bezel).
  • Wall mount may be mounted in any orientation.
  • Allows easy insertion and removal of the touch screen.
  • Bezel attaches magnetically to the retrofit wall mount base.

Specifications

Dimensions: (W/H/D):
11.37 in. (288mm) X 8.18 in. (207.8mm) X 1.64 in. (41.6mm)
Weight: 4.84 lbs. (2.2kg)
Material: Moisture resistant MDF

Other Specifications

Shipping Info
  • Length13.1 (Inches)
  • Width8.9 (Inches)
  • Height2.8 (Inches)
  • Weight1.6 (Lbs)
  • Unit of MeasureEach
  • UPC844039013392
  • Master Pack Qty14

Warranty

2 Year Warranty
