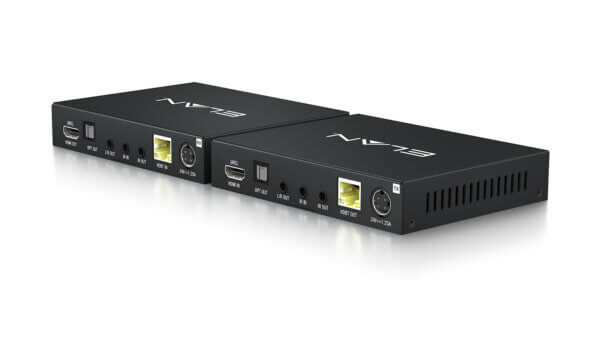

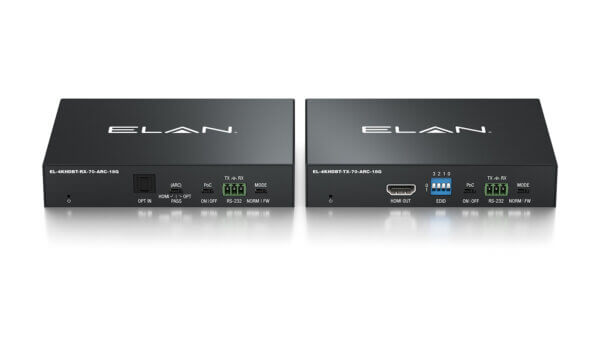

EL-4KHDBT-KIT-70-ARC-18G

HDBaseT Extender Set – 100m (4K up to 70m), Bi-directional IR, RS232, Bi-directional PoC

The ELAN® 4K HDBaseT ARC extender set offers market leading features for the custom installation industry. The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and RS-232 and Bi-directional PoC up to lengths of 70m @ 4k.

Description

Features

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
  • Extends HDMI 4k60 4:4:4 up to 70m over a single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Features 1 x HDMI loop-out on EL-4KHDBT-TX-70-ARC-18G for integrating local displays or cascading to multiple devices
  • Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input*
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional IR pass-through • Bi-directional RS-232 pass-through
  • Supplied with ELAN IR receiver and emitter
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • HDCP 2.2 compliant with smart EDID management *Please note: When using an eARC display, only 2 channel PCM audio is supported.

Specifications

EL-4KHDBT-TX-70-ARC-18G$$
Video Input Connectors$$1 x HDMI Type A, female
Video Output Connectors$$1 x HDBaseT RJ45 connector, 1 x HDMI Type A, female
Audio Output Ports$$ 1 x Optical (S/PDIF), 1 x 3.5mm L/R analog audio
RS-232 Port$$ 1 x 3-pin Phoenix connector
IR Input Port$$ 1 x 3.5mm stereo jack
IR Output Port$$1 x 3.5mm mono jack
Product Upgrade$$ 1 x Micro-USB, female
Casing Dimensions (W x D x H)$$ 135 x 105 x 25mm

EL-4KHDBT-KIT-70-ARC-18G $$
Power Supply$$1 x 24V/1.25A DC, 4-pin DIN connector
Box Dimensions (W x D x H)$$ 248 x 151 x 103mm
Shipping Weight$$ 1kg
Operating Temperature$$ 32°F to 104°F (-5°C to +55°C)
Storage Temperature$$ -4°F to 140°F (-25°C to +70°C)

EL-4KHDBT-RX-70-ARC-18G
Video Input Connectors$$1 x HDBaseT RJ45 connector
Video Output Connectors$$1 x HDMI Type A, female
Audio Input Ports$$ 1 x Optical (S/PDIF)
Audio Output Ports$$ 1 x Optical (S/PDIF), 1 x 3.5mm L/R analog audio
RS-232 Port$$1 x 3-pin Phoenix connector
IR Input Port$$ 1 x 3.5mm stereo jack
IR Output Port$$ 1 x 3.5mm mono jack
Product Upgrade$$1 x Micro-USB, female
Casing Dimensions (W x D x H)$$ 135 x 105 x 25mm

  • 1 x EL-4KHDBT-TX-70-ARC-18G
  • 1 x EL-4KHDBT-RX-70-ARC-18G
  • 1 x 24V/1.25A DC Power Supply
  • 1 x IR Emitter
  • 1 x IR Receiver
  • 2 x Mounting Bracket Sets
  • 1 x Quick Reference Guide
