EL-4KHDBT-KIT-70-E-ARC-IRS

HDBaseT Extender Set – 100m (4K up to 70m)

HDBaseT Extender Set – 100m (4K up to 70m), Bi-directional IR, Bi-directional PoH (PoE), Audio Breakout, ARC, RS-232, 3 x LAN switch, HDMI Loop Out, HDCP 2.2

Description

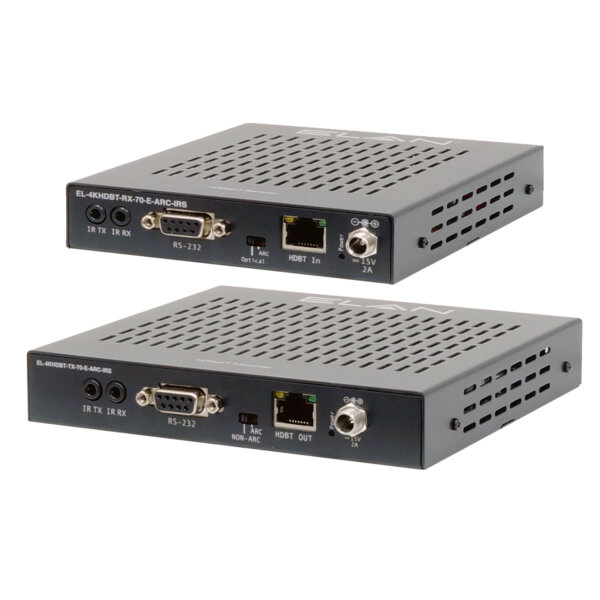

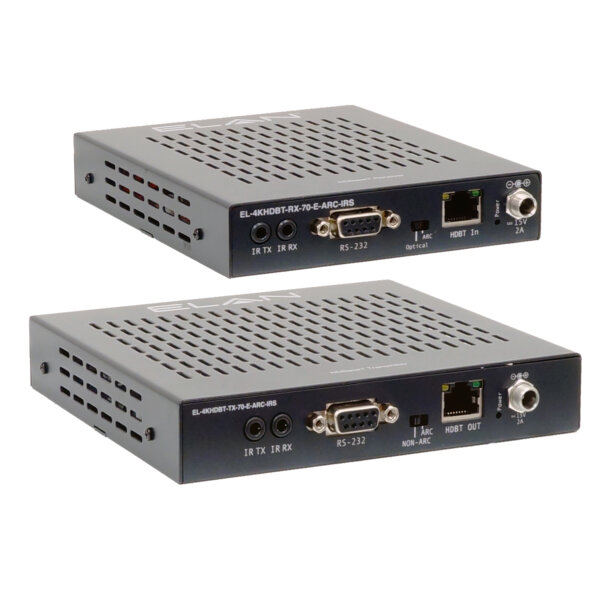

The EL-4KHDBT-KIT-70-E-ARC-IRS extender set is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m (4K up to 70m) over a single CAT cable. The EL-4KHDBT-KIT-70-E-ARC-IRS also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch.

Features

  • Extends HDMI 1080p up to a distance of 100m over single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Features 1x HDMI loop out for integrating local displays or cascading to multiple devices
  • Supports ARC (Audio Return Channel) from display via HDMI and Optical digital inputs
  • Supports audio return to HDMI, Optical digital and analog L/R audio outputs (DAC supports 2CH PCM only)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated 3-port Ethernet switch (LAN Serving)Bi-directional RS-232 pass through
  • Bi-directional IR from all input and output locations
  • Includes 1 x 5v-to-12v IR converter cable for IR Input
  • Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver endHDCP 2.2 compliant

Specifications

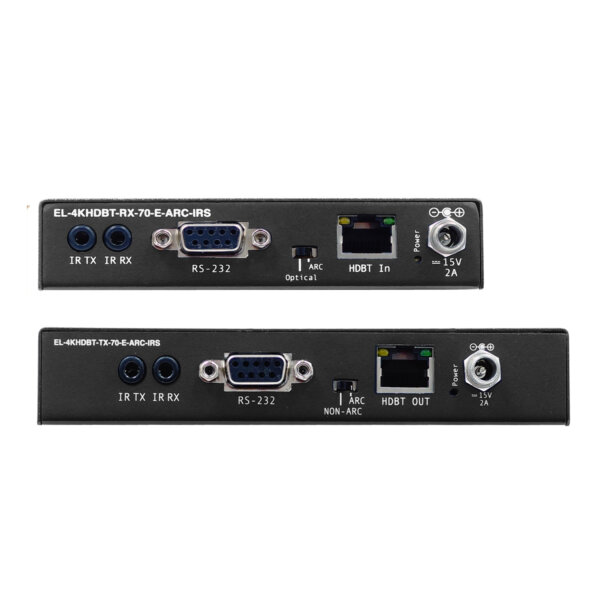

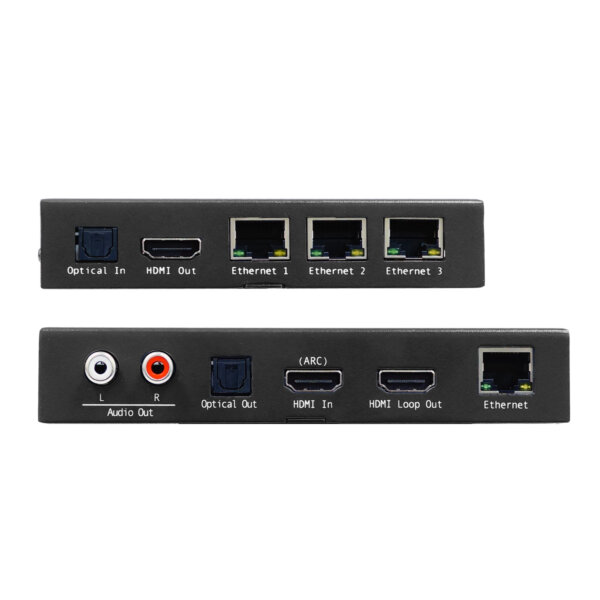

Video Input Connectors $$1x HDMI Type A, female

Video Output Connectors $$1x HDBaseT RJ45 connector, 1x HDMI Type A, female

Audio Output Connectors $$2x RCA (L/R), 1x Optical (SPDIF)

Ethernet port $$1x RJ45 connector,

RS-232 serial port $$1x DB-9 female

IR Input ports $$1 x 5v 3.5mm stereo jack

IR Output ports $$1 x 5v 3.5mm mono jack

Rack-Mountable $$2x mounting bracket

Video Input Connectors $$1x HDBaseT RJ45 connector

Video Output Connectors $$1x HDMI Type A, female

Audio Input Connectors $$1x Toslink

Ethernet port $$3x RJ-45 connector

RS-232 serial port $$1x DB-9 female

IR Input ports $$1 x 5v 3.5mm stereo jack

IR Output ports $$1 x 5v 3.5mm mono jack
Mounting kit included

Casing Dimensions (W x D x H ) $$114mm x 135mm x 24mm (RX)
$$143mm x 135mm x 25mm (TX)

Dimensions including connections (W x D x H ) $$114mm x 139mm x 24mm (RX)
$$143mm x 140mm x 25mm (TX) with connections

Shipping Weight $$1.4kg

Operating Temperature $$32°F to 104°F (0°C to 40°C)

Storage Temperature $$-4°F to 140°F (-20°C to 60°C)

Power Supply $$1x 15V/2A DC, screw connector

Other Specifications

Shipping Info
  • Length13.3 (Inches)
  • Width11.4 (Inches)
  • Height2.3 (Inches)
  • Weight1.54 (Lbs)
  • Unit of MeasureEach
  • UPC844039013514
Other Specifications
  • Video Input Connectors 1x HDMI Type A, female
  • Video Output Connectors 1x HDBaseT RJ45 connector, 1x HDMI Type A, female
  • Audio Output Connectors 2x RCA (L/R), 1x Optical (SPDIF)
  • Ethernet port 1x RJ45 connector,
  • RS-232 serial port 1x DB-9 female
  • IR Input ports 1 x 5v 3.5mm stereo jack
  • IR Output ports 1 x 5v 3.5mm mono jack
  • Rack-Mountable 2x mounting bracket
  • Video Input Connectors 1x HDBaseT RJ45 connector
  • Video Output Connectors 1x HDMI Type A, female
  • Audio Input Connectors 1x Toslink
  • Ethernet port 3x RJ-45 connector
  • RS-232 serial port 1x DB-9 female
  • IR Input ports 1 x 5v 3.5mm stereo jack
  • IR Output ports 1 x 5v 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x D x H ) 114mm x 135mm x 24mm (RX)
  • 143mm x 135mm x 25mm (TX)
  • Dimensions including connections (W x D x H ) 114mm x 139mm x 24mm (RX)
  • 143mm x 140mm x 25mm (TX) with connections
  • Shipping Weight 1.4kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Power Supply 1x 15V/2A DC, screw connector

Warranty

2 Year Limited Warranty.
