EL-4KHDBT-KIT-40-IRS

HDBaseT Extender Set – 70m (4K up to 40m)

HDBaseT Extender Set – 70m (4K up to 40m), Bi-directional IR, RS232, Bi-directional PoH (PoE)

Description

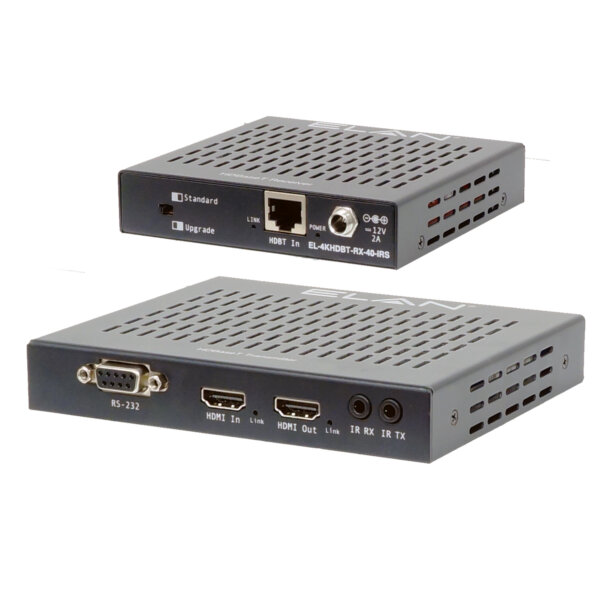

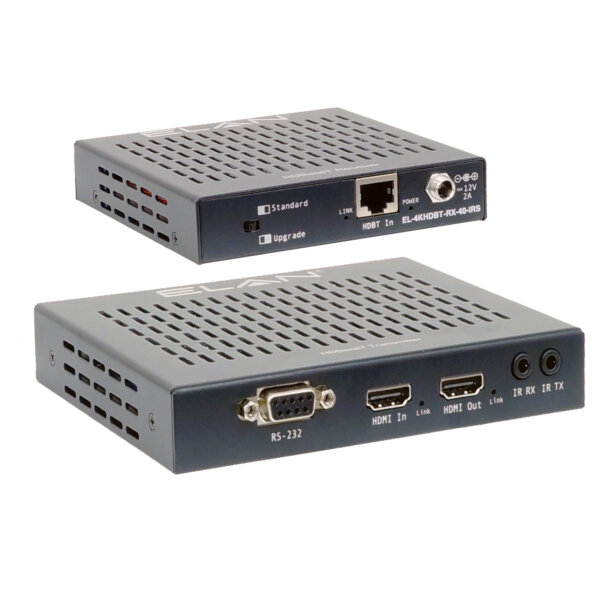

The EL-4KHDBT-KIT-40-IRS 4K HDBaseT extender set offers market leading features and outstanding value. The product extends HDMI, RS-232, Bi-directional IR & RS232 and Bi-directional PoH (PoE) up to lengths of 70m (4K up to 40m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

Features

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080p up to a distance of 70m over single CAT cable
  • Features 1x HDMI loop-out for integrating local displays or cascading to multiple devices
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal displaySupports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional RS-232 pass through
  • Bi-directional IR from all input and output locations
  • Includes 1 x 5v-to-12v IR converter cable for IR Input
  • Advanced EDID management HDCP 2.2 compliant

Specifications

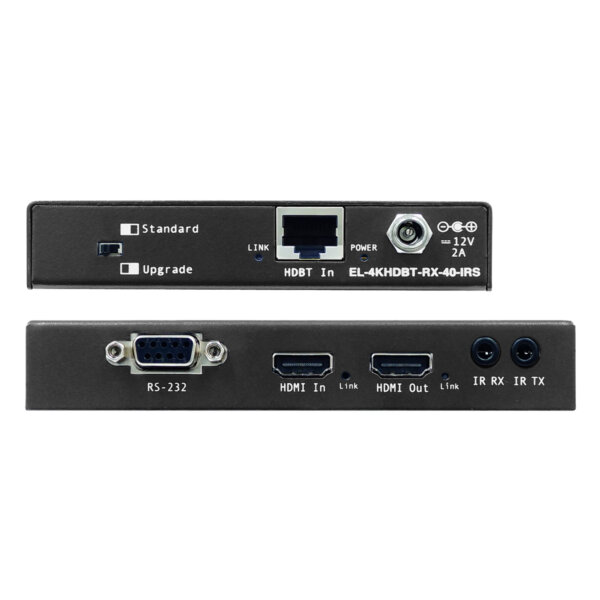

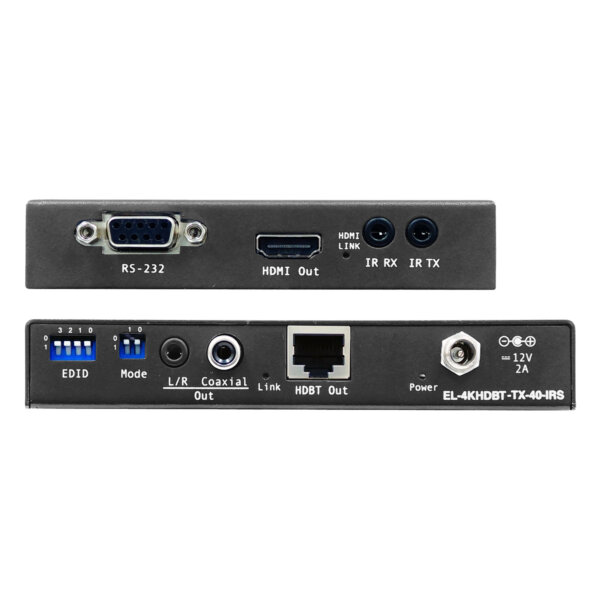

Video Input Connectors$$1x HDMI Type A, female

Video Output Connectors$$1x HDBaseT RJ45 connector
$$1x HDMI Type A, female

RS-232 serial port $$1x DB-9 female

IR Input ports $$1 x 5v 3.5mm stereo jack

IR Output ports $$1 x 5v 3.5mm mono jack

Video Input Connectors $$1x HDBaseT RJ45 connector

Video Output Connectors $$1x HDMI Type A, female

RS-232 serial port $$1x DB-9 female

IR Input $$1 x 5v 3.5mm stereo jack

IR Output $$1 x 5v 3.5mm mono jack

Mounting kit included

Casing Dimensions (W x D x H) $$110mm x 108mm x 22mm (RX)
$$139mm x $$114mm x 22mm (TX)

Dimensions (W x D x H ) $$110mm x 118mm x 22mm (RX)
$$139mm x $$127mm x 22mm (TX) with connections

Shipping Weight $$1.4kg

Operating Temperature $$32°F to 104°F (0°C to 40°C)
Storage Temperature $$-4°F to 140°F (-20°C to 60°C)

Power Supply $$1x 12V/2A DC, screw type connector

Power Consumption $$9.5W

Other Specifications

Shipping Info
  • Length13.2 (Inches)
  • Width11.3 (Inches)
  • Height2.3 (Inches)
  • Weight3.05 (Lbs)
  • Unit of MeasureEach
  • UPC844039013507
Other Specifications
  • Video Input Connectors1x HDMI Type A, female
  • Video Output Connectors1x HDBaseT RJ45 connector
  • 1x HDMI Type A, female
  • RS-232 serial port 1x DB-9 female
  • IR Input ports 1 x 5v 3.5mm stereo jack
  • IR Output ports 1 x 5v 3.5mm mono jack
  • Video Input Connectors 1x HDBaseT RJ45 connector
  • Video Output Connectors 1x HDMI Type A, female
  • RS-232 serial port 1x DB-9 female
  • IR Input 1 x 5v 3.5mm stereo jack
  • IR Output 1 x 5v 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x D x H) 110mm x 108mm x 22mm (RX)
  • 139mm x 114mm x 22mm (TX)
  • Dimensions (W x D x H ) 110mm x 118mm x 22mm (RX)
  • 139mm x 127mm x 22mm (TX) with connections
  • Shipping Weight 1.4kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Power Supply 1x 12V/2A DC, screw type connector
  • Power Consumption 9.5W

Warranty

2 Year Limited Warranty.
