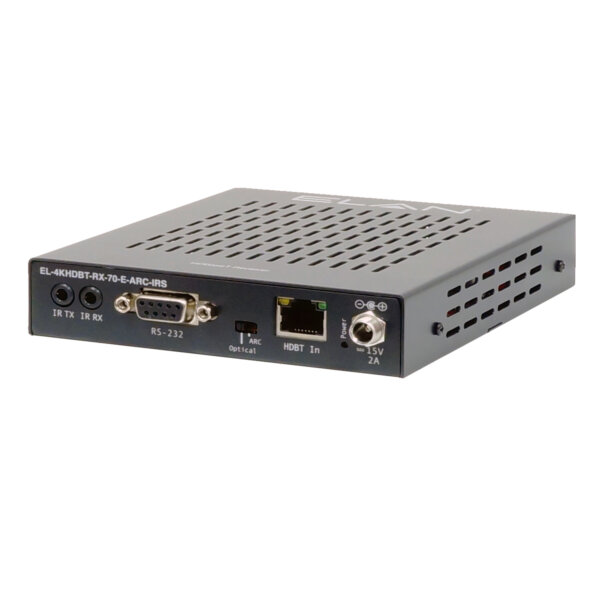

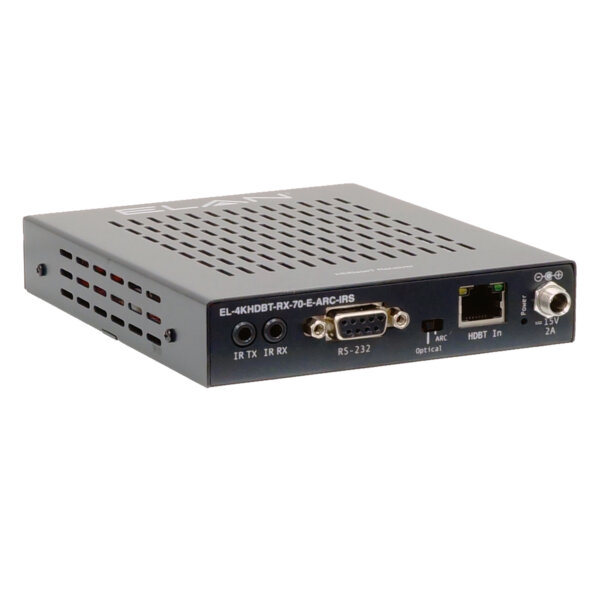

EL-4KHDBT-RX-70-E-ARC-IRS

HDBaseT Receiver – 100m (4K up to 70m)

HDBaseT Receiver – 100m (4K up to 70m), Bi-directional IR, PoH (PoE), Optical input, ARC, RS-232, 3 x Ethernet Switch

Description

Offering the very best in performance and flexibility the EL-4KHDBT-RX-70-ARC is an industry leading 4K  HDBaseT receiver delivering HDMI, ARC (Audio Return Channel), Ethernet, Bi-directional IR and PoH (PoE) up to lengths of 100m over a single CAT cable (4K up to 70m).

Features

  • Extends HDMI 1080p up to a distance of 100m over single CAT cable
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal displaySupports ARC (Audio Return Channel) from display via HDMI or Optical digital inputs (when used with compatible Transmitter/Matrix)
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Integrated Ethernet switch (LAN Serving) when used as part of an Nice/ELAN EL-4KHDBT-KIT-70-E-ARC-IRS or Nice/ELAN Premium Matrix products. EL-4KHDBT-RX-70-E-ARC-IRS features a 3 port 10/100 Ethernet switch.
  • Bi-directional RS-232 pass throughBi-directional IR from all input and output locations
  • Bi-directional PoH (Power over HDBaseT) to power extenders from either Nice/ELAN Matrix products or receiver end
  • HDCP 2.2 compliant

Specifications

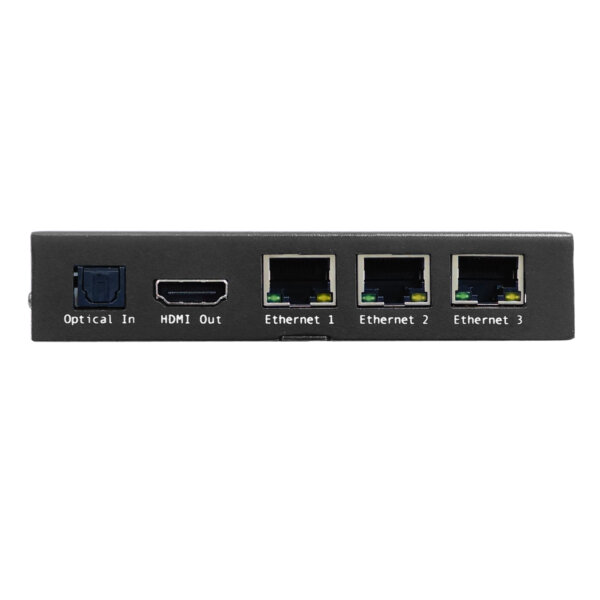

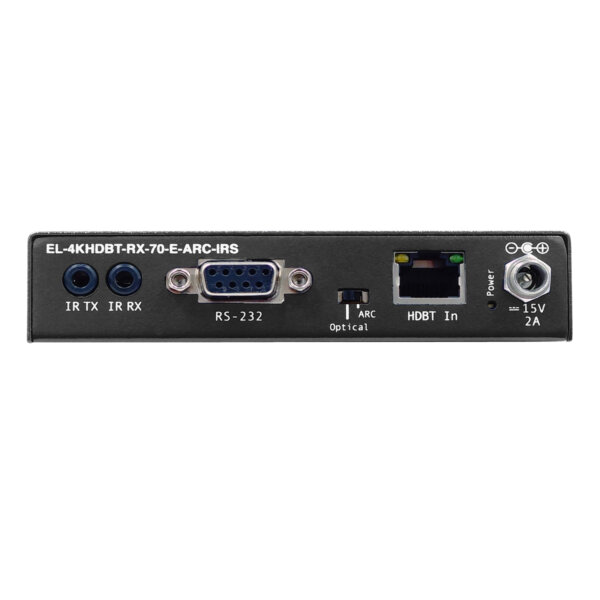

Video Input Connectors :1x HDBaseT RJ45 connector

Video Output Connectors :1x HDMI Type A, female

Audio Input Connectors :1x Optical (SPDIF)

Ethernet port :3x RJ45 connector
:RS-232 serial port
:1x DB-9 female

IR Input ports :1x5v 3.5mm stereo jack

IR Output ports :1x5v 3.5mm mono jack
Mounting kit included

Casing Dimensions (W x D x H) :114mm x 135mm x 24mm

Dimensions (W x D x H ) :114mm x 139mm x 24mm

Shipping Weight (Kit): 0.5kg

Operating Temperature :32°F to 104°F (0°C to 40°C)

Storage Temperature :-4°F to 140°F (-20°C to 60°C

Power Supply :1x 12V/2A DC, screw connector

Other Specifications

Shipping Info
  • Length7.48 (Inches)
  • Width6.3 (Inches)
  • Height1.77 (Inches)
  • Weight1.1 (Lbs)
  • Unit of MeasureEach
  • UPC844039013484
Other Specifications
  • Video Input Connectors 1x HDBaseT RJ45 connector
  • Video Output Connectors 1x HDMI Type A, female
  • Audio Input Connectors 1x Optical (SPDIF)
  • Ethernet port 3x RJ45 connector
  • RS-232 serial port
  • 1x DB-9 female
  • IR Input ports 1x5v 3.5mm stereo jack
  • IR Output ports 1x5v 3.5mm mono jack
  • Mounting kit included
  • Casing Dimensions (W x D x H) 114mm x 135mm x 24mm
  • Dimensions (W x D x H ) 114mm x 139mm x 24mm
  • Shipping Weight (Kit) 0.5kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C
  • Power Supply 1x 12V/2A DC, screw connector

Warranty

2 Year Limited Warranty.
