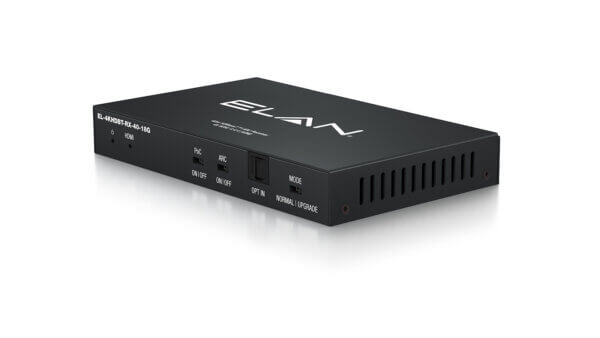

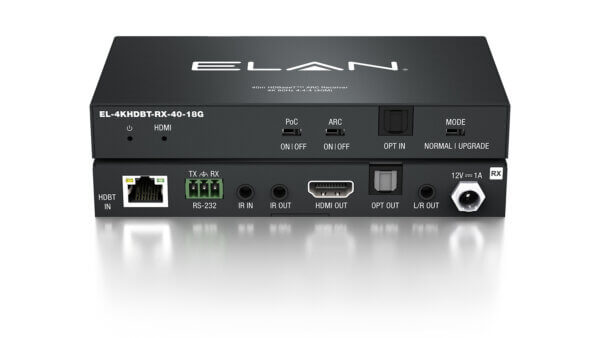

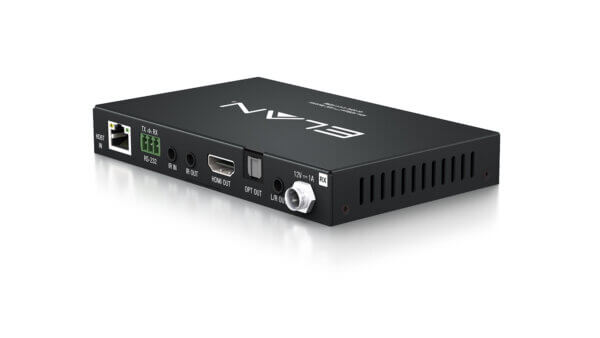

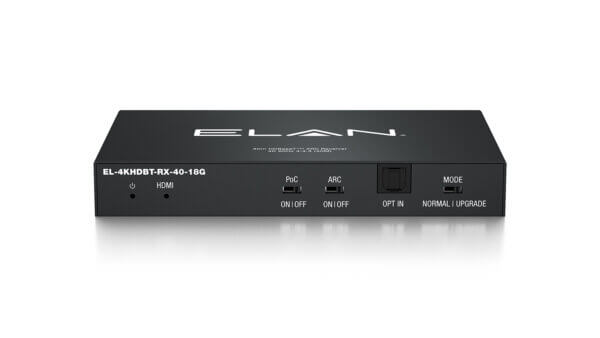

EL-4KHDBT-RX-40-18G

HDBaseT Extender Set – 70m (4K up to 40m), Bi-directional IR, RS232, Bi-directional PoC

Specifications

Video Input Connectors$$ 1 x HDBaseT RJ45 connector
Video Output Connectors$$ 1 x HDMI Type A, female
RS-232 Input Port$$ 1 x 3-pin Phoenix connector
IR Input Port$$ 1 x 3.5mm stereo jack
IR Output Port$$ 1 x 3.5mm mono jack
Audio Input/Output Ports$$ Optical in, Optical out, Analog L/R out Mounting Kit included
Casing Dimensions (W x H x D)$$ 140 x 84 x 18mm
Dimensions Including Connections (W x H x D)$$ 140 x 98 x 18mm
Power Supply$$12V/1A DC, screw type connector (not included)
Shipping Weight$$0.5Kg
Operating Temperature$$23°F to 131°F (-5°C to +55°C)
Storage Temperature$$-13°F to 158°F (-25°C to +70°C)

Package Contents:

  • 1 x EL-4KHDBT-RX-40-18G
  • 1 x Mounting Bracket Set
  • 1 x Quick Reference Guide
