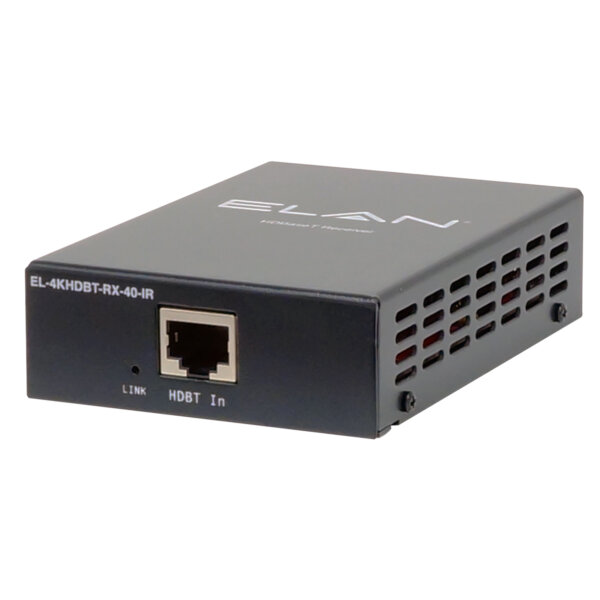

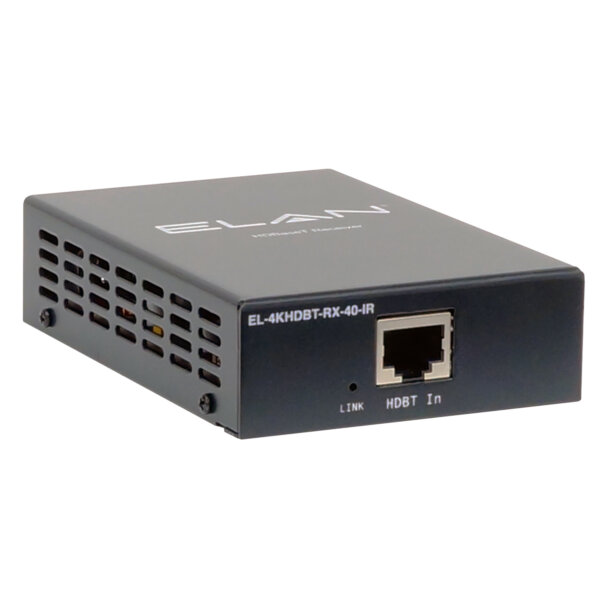

EL-4KHDBT-RX-40-IR

HDBaseT Receiver – 70m (4K up to 40m)

HDBaseT Receiver – 70m (4K up to 40m), Bi-directional IR, PoH (PoE)

Description

The EL-4KHDBT-RX-40-IR 4K HDBaseT receiver offers market leading features and outstanding value. The product receives HDMI, Bi-directional IR and Bi-directional PoH (PoE) up to lengths of 70m (4K up to 40m).

Features

  • Extends HDMI 1080p up to a distance of 70m over single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Bi-directional PoH (Power over HDBaseT) to power extenders from either ELAN Matrix products or receiver endBi-directional IR from all input and output locationsHDCP 2.2 compliant

Specifications

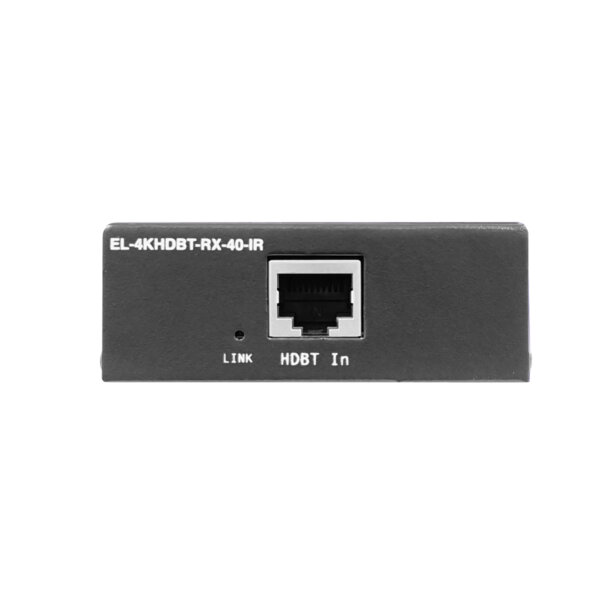

Video input $$1x HDBaseT RJ45 connector

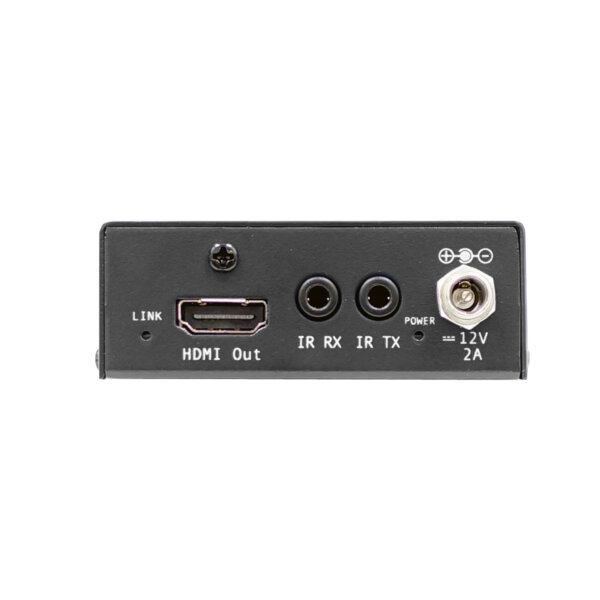

Video output $$1x HDMI Type A, 19-pin, female

IR input $$1x5v 3.5mm stereo jack

IR output $$ 1x5v 3.5mm mono jack

Power Supply $$12V/2A DC
$$screw type connectorPower Consumption 9.5W

Casing Dimensions (W x D x H) $$75mm x 104mm x 27mm

Dimensions (W x D x H) $$75mm x 108mm x 27mm with connections

Shipping Weight $$0.4kg

Operating Temperature $$32°F to 104°F (0°C to 40°C)

Storage Temperature $$-4°F to 140°F (-20°C to 60°C)

Mounting kit included

Other Specifications

Shipping Info
  • Length5.5 (Inches)
  • Width4.6 (Inches)
  • Height1.5 (Inches)
  • Weight0.5 (Lbs)
  • Unit of MeasureEach
  • UPC844039013477
Other Specifications
  • Video input 1x HDBaseT RJ45 connector
  • Video output 1x HDMI Type A, 19-pin, female
  • IR input 1x5v 3.5mm stereo jack
  • IR output 1x5v 3.5mm mono jack
  • Power Supply 12V/2A DC
  • screw type connectorPower Consumption 9.5W
  • Casing Dimensions (W x D x H) 75mm x 104mm x 27mm
  • Dimensions (W x D x H) 75mm x 108mm x 27mm with connections
  • Shipping Weight 0.4kg
  • Operating Temperature 32°F to 104°F (0°C to 40°C)
  • Storage Temperature -4°F to 140°F (-20°C to 60°C)
  • Mounting kit included

Warranty

2 Year Limited Warranty.
