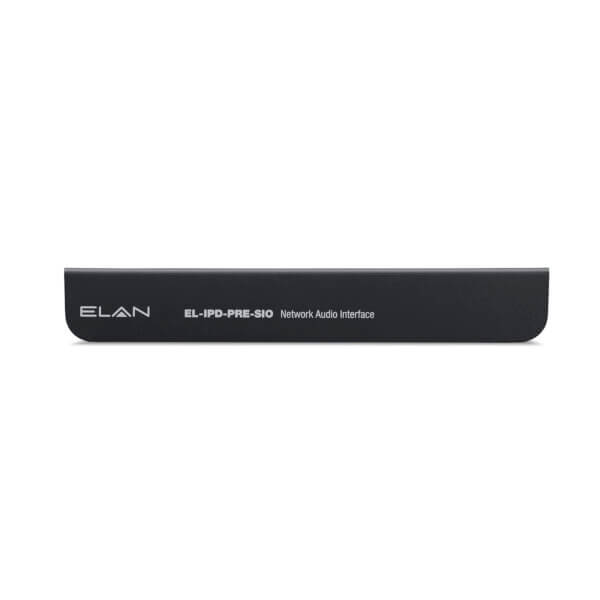

EL-IPD-PRE-SIO

Network Audio Interface

The Network Audio Interface delivers audio over a standard local area network from a single source to an ELAN Dante™ enabled amplifier or deliver audio from an ELAN Dante™ enabled amplifier or preamplifier to a secondary amplifier.

Description

The Network Audio Interface enables the delivery of bidirectional audio over a standard local area network. Send audio from a single remote source to an ELAN Dante enabled amplifier or from an ELAN Dante enabled amplifier or preamplifier to a secondary amplifier.ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by delivering high quality audio over an existing network. Easily scaling from a single chassis solution to a decentralized multi-chassis / multi-source implementation, ELAN IP audio distribution meets the needs for projects of any size.

Features

Three available inputs
• Optical TOSLINK
• Coaxial RCA
• Analog RCA

Pre-amp outputs
• Analog RCA
• Subwoofer RCA

Bidirectional audio over a standard local area network using Dante Audio Networking

Specifications

Power:
802.3af or 802.3at
Type 1 or DC 5V, 2A

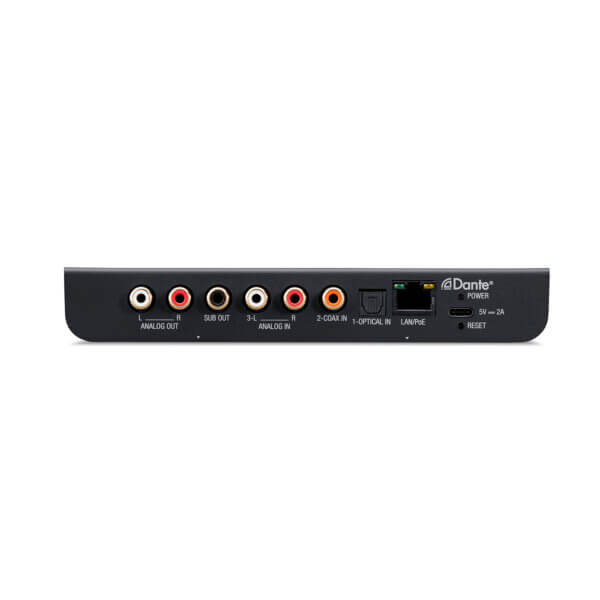

Inputs:
3 available, selectable at installation
• Optical TOSLINK
• Coaxial RCA
• Analog RCA

Outputs:
• Analog RCA
• Subwoofer RCA

Network:
100 Mbps Ethernet (PoE) DHCP Enabled by Default
• 1 RJ45 Jack

Dimensions
7.01 W x 1.09 H x 4.13in D / 17.80 W x 2.79 H x 10.5cm D

Weight:
0.65 lbs / 0.29 Kg
