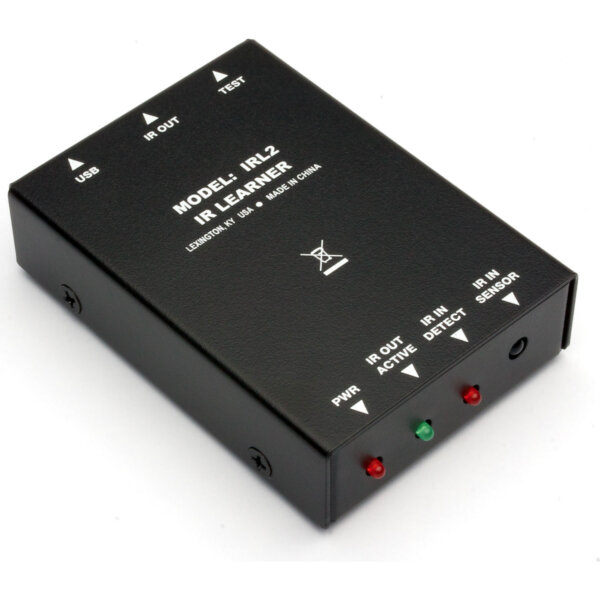

PC Infrared Learning Interface

IRL2

Easily learn new IR codes and add them to your g! database with this IR capture device.

Description

The IRL2 is specifically designed for system integration professionals. This device easily connects to a PC via USB and provides the necessary tools that allow creation of re-usable programming databases in the most efficient and reliable way possible. The IRL2 is designed to work together with the infrared library manager that is included as part of the Configurator software program. Item included with the IRL2 are listed below as well as system requirements for the PC used for programming.

Specifications

Size: 3.66” W x 2.6” H x 0.92” D
Power requirements: Powered over USB
IR Carrier Frequency Range: 15kHz – 460kHz, or no carrier
Operating temperature: +32 F to +122 F (0 C to +50 C)
Weight: 8 oz

Other Specifications

Shipping Info
  • Length5.75 (Inches)
  • Width4 (Inches)
  • Height2.5 (Inches)
  • Weight0.75 (Lbs)
  • Unit of MeasureEach
  • UPC844039011046
  • Master Pack Qty20
  • Size 3.66″ W x 2.6″ H x 0.92″ D
  • Power requirements Powered over USB
  • IR Carrier Frequency Range 15kHz – 460kHz, or no carrier
  • Operating temperature +32 F to +122 F (0 C to +50 C)
  • Weight 8 oz

Warranty

2 Year Limited Warranty.
