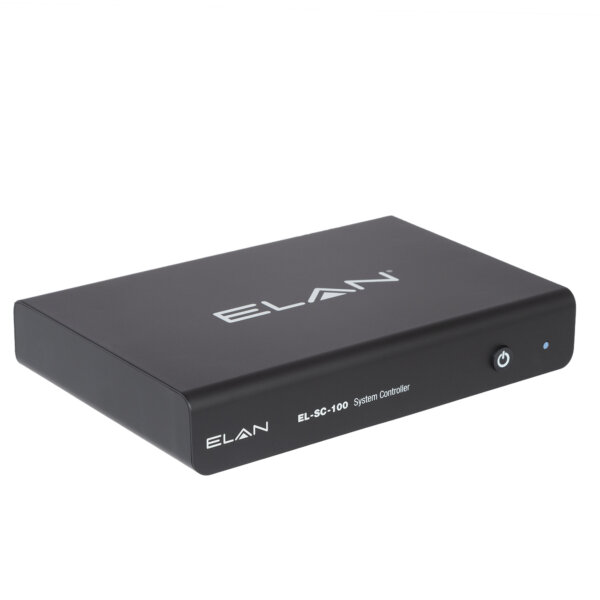

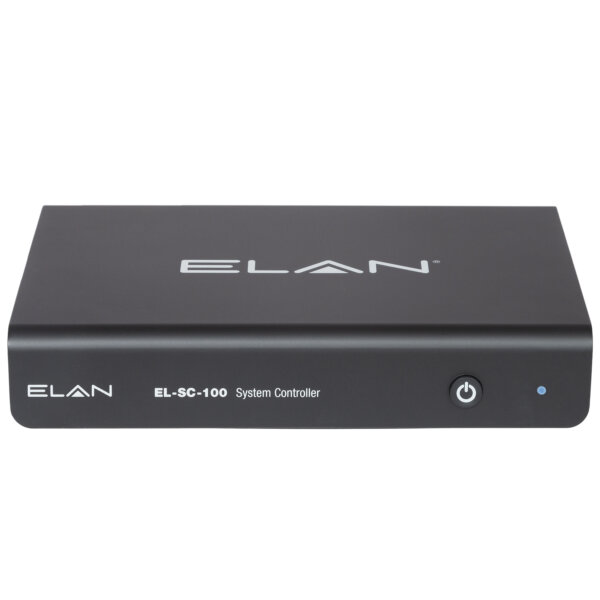

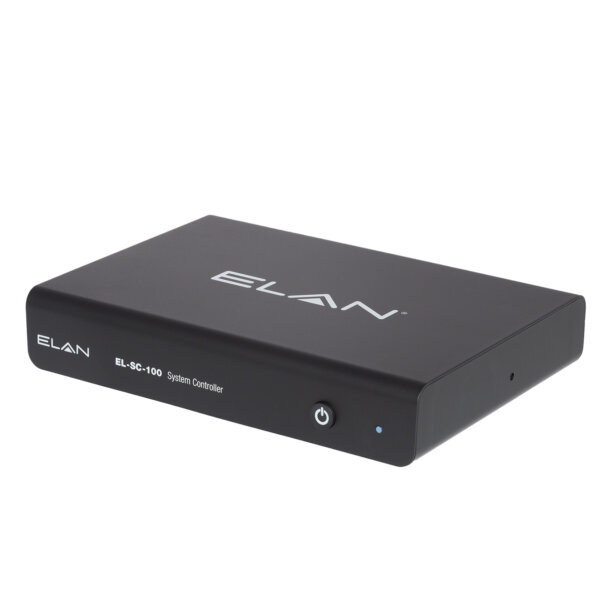

EL-SC-100

SC-100 System Controller

The EL-SC-100 provides a single point of control and automation for media, climate, lighting, door locks, and more.

Description

For smaller to moderate installations the EL-SC-100 provides a single point of control and automation for media, climate, lighting, and more. And, the SC-100 control solution paired with an HR10 remote and mobile app at a special bundled price (EL-SC-100-BDL) is perfect for your customers wanting an easy way to control their media rooms. If more control is needed, add essential control of lighting, climate and door locks. An ELAN HR10 remote control and the SC-100 provide everything needed for an essential control solution.

Priced competitively, the SC-100 is also the perfect solution for builders. And with the optional structured wiring cabinet mount (EL-SC-100-BKT) it easily mounts in a structured wiring cabinet to be the standard in your builder projects. And just like the g1, the SC-100 can be used as an extender for larger installations where a gSC2 or gSc10 are the primary controller to easily extend control to remote areas of the home.

Features

  • Improved Performance with Quad-core 64-bit Cortex-A53 processor
  • Fully pinned Serial RS-232 port (RJ45 Connector)
  • 3 IR ports
  • 1 Audio Output
  • 1 ELAN Sense Input
  • On-Screen Display (HDMI)
  • USB-A Connector
  • Gigabit Ethernet RJ-45 PoE Compatible

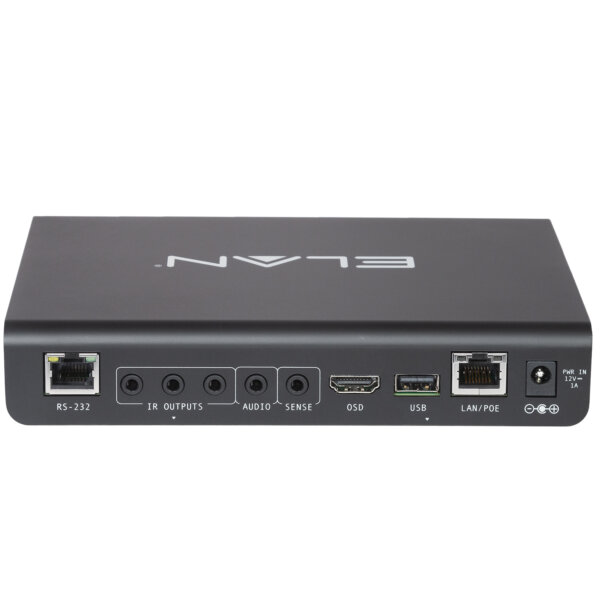

Specifications

RS-232 $$ (1) RJ-45 Connector
ELAN Sense $$ (1) 3.5mm Connector
IR Output $$ (3) 3.5mm Connectors (Mono), – 12V DC
Audio $$ (1) 3.5mm Connectors (Stereo)
On-Screen Display$$ (1) HDMI Female Connector
USB $$ (1) USB A Connector
Ethernet$$ (1) RJ-45 PoE Connector
Wi-Fi $$ 802.11 b/g/n
Power$$ Coaxial Type A, 2.5mm inside diam.
Included Power Supply$$ 120/240VAC input 12VDC 1A output
Temperature $$ 32 °F to 131 Degrees° F
Operating Humidity $$ 90% Maximum (Non-Condensing)
Mounting $$ Free standing, Wall mount, Structured wiring cabinet

Dimensions$$
(in.) 6 15/16 W x 1 1/4 H x 5 D
$$
(mm) 176 W x x 31 H x 126 D

Weight$$0.8 lb / 0.36 Kg

Certifications$$CE, FCC, C-Tick

Software compatibility$$Requires Core Module 8.4 or above

Updates$$Managed by Core Module software

Other Specifications

Warranty

2 Year
