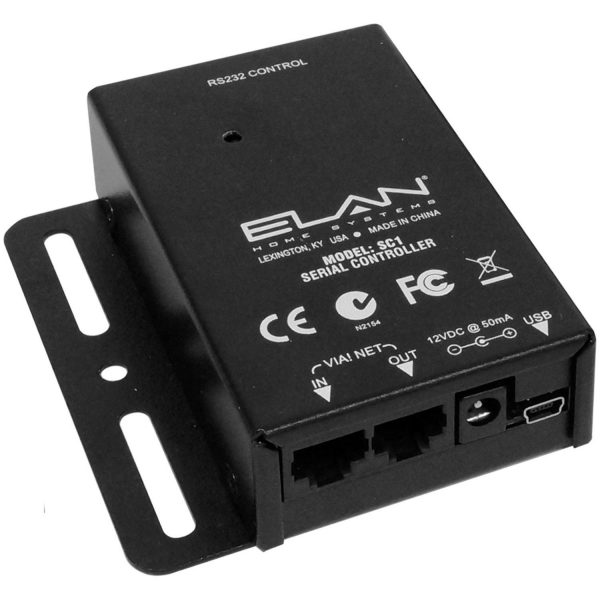

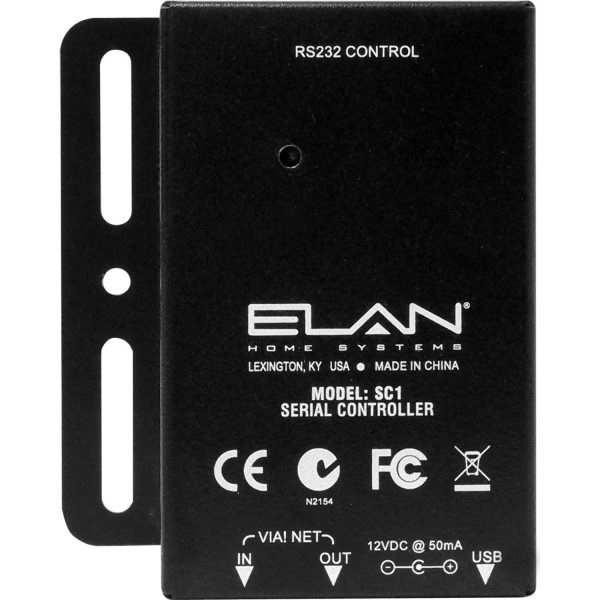

Serial to ViaNet Controller

SC1

The ELAN SC1 is a serial to ViaNet interface that provides integration of legacy ViaNet devices with the ELAN gSC2, gSC10 and g1 (g! Series) controllers.

Description

The SC1 allows the g! Series controllers to communicate with the ELAN S1616A and TS2 and TS2L. It may provide interface to additional ELAN ViaNet legacy components, but components other than those listed in the previous sentence have not been tested and are not supported. You should test the SC1 with devices other than those listed above prior to committing your customer to an unsupported upgrade path.

Features

  • Converts Serial protocol communications to ELAN ViaNet protocol communications
  • Convenient RJ-45 to RJ-45 connections
  • LED activity indicator for easy troubleshooting
  • g! Controller Programming

Specifications

Power:
Power Requirements : 12VDC @ 50mA Nominal

COM Port:
Type: RJ-45
Recommended connector: RJ-45 to RJ-45 Crossover Cable (Included)

VIA!NET IN/OUT
ELAN Standard RJ-45:
Recommended cable: RJ-45 to RJ-45 ViaNET cable (Not Included)

Dimensions: 3”L x 2.3”W x 1”H
: 7.62cm L x 5.842cm W x 2.54cm H
Weight: 0.5 lbs.
: 227 grams
Shipping Weight: 1 lbs.
: 454 grams

Other Specifications

Shipping Info
  • Length5.9 (Inches)
  • Width4.6 (Inches)
  • Height2.3 (Inches)
  • Weight0.9 (Lbs)
  • Unit of MeasureEach
  • UPC844039007964
  • Master Pack Qty24
  • Power
  • Power Requirements 12VDC @ 50mA Nominal
  • COM Port
  • Type RJ-45
  • Recommended connector RJ-45 to RJ-45 Crossover Cable (Included)
  • VIA!NET IN/OUT
  • ELAN Standard RJ-45
  • Recommended cable RJ-45 to RJ-45 ViaNET cable (Not Included)
  • Dimensions3″L x 2.3″W x 1″H
  • 7.62cm L x 5.842cm W x 2.54cm H
  • Weight0.5 lbs.
  • 227 grams
  • Shipping Weight1 lbs.
  • 454 grams

Warranty

2 Year Limited Warranty.
